7. Connect coolant hose coupling "S", Figure 1.47, and engage the locking handles.
8. If the coolant tank is equipped with a coolant level sensor, connect cable “R” to the receptacle
on the coolant tank.
9. Replace the access cover.
10. If the machine is equipped with a chip conveyor, connect the chip conveyor power cable to plug
"T", Figure 1.48.
M-507C 1-27

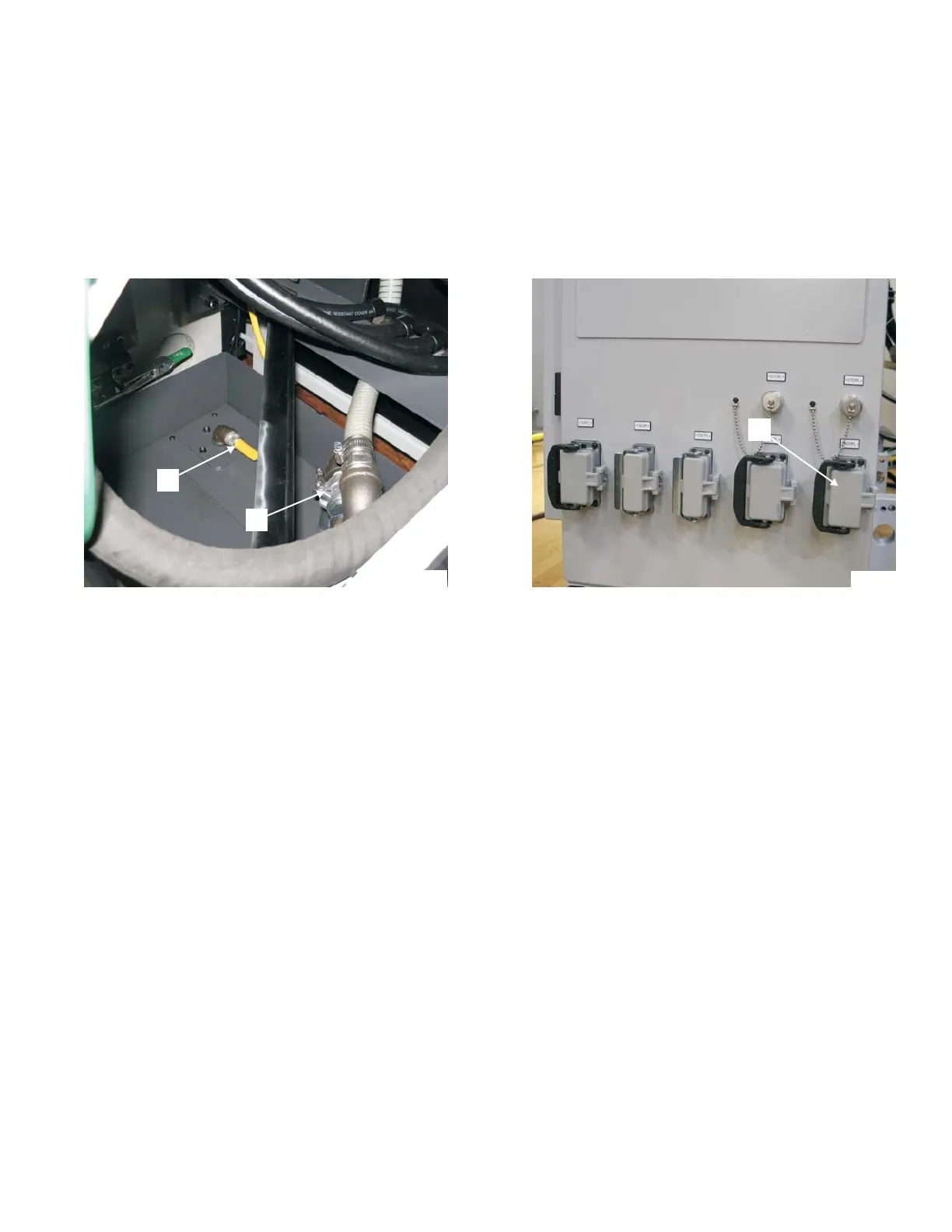

Figure 1.47 - Coolant Hose Connection
TP8220
S
R
Figure 1.48 - Chip Conveyor Power
Connection on Power Case
TP7960A
T
