SPINDLE CHILLER
- WARNING -
Spilling fluid on the floor can create a slipping hazard. Spilled fluid must be
cleaned up immediately.
- NOTE -
The spindle chiller must be disconnected if the machine is to be moved.
DISCONNECTING THE SPINDLE CHILLER
1. Verify the machine is powered down.
2. Remove air filter "L", Figure 2.31.
3. Remove access cover "I".
4. Remove the clear shield from terminal strip "N", Figure 2.32.
5. Disconnect all wires in conduit "J", Figure 2.31, from the terminal strip and circuit breaker "M",
Figure 2.32.
6. Disconnect the conduit from the chiller unit.
7. Disconnect temperature probe wires "K" from the terminal strip.
8. Remove the temperature probe wires from the chiller unit.
9. Replace the clear shield on the terminal strip.
10. Install access cover "I".
11. Install air filter "L".
M-507C 2-23

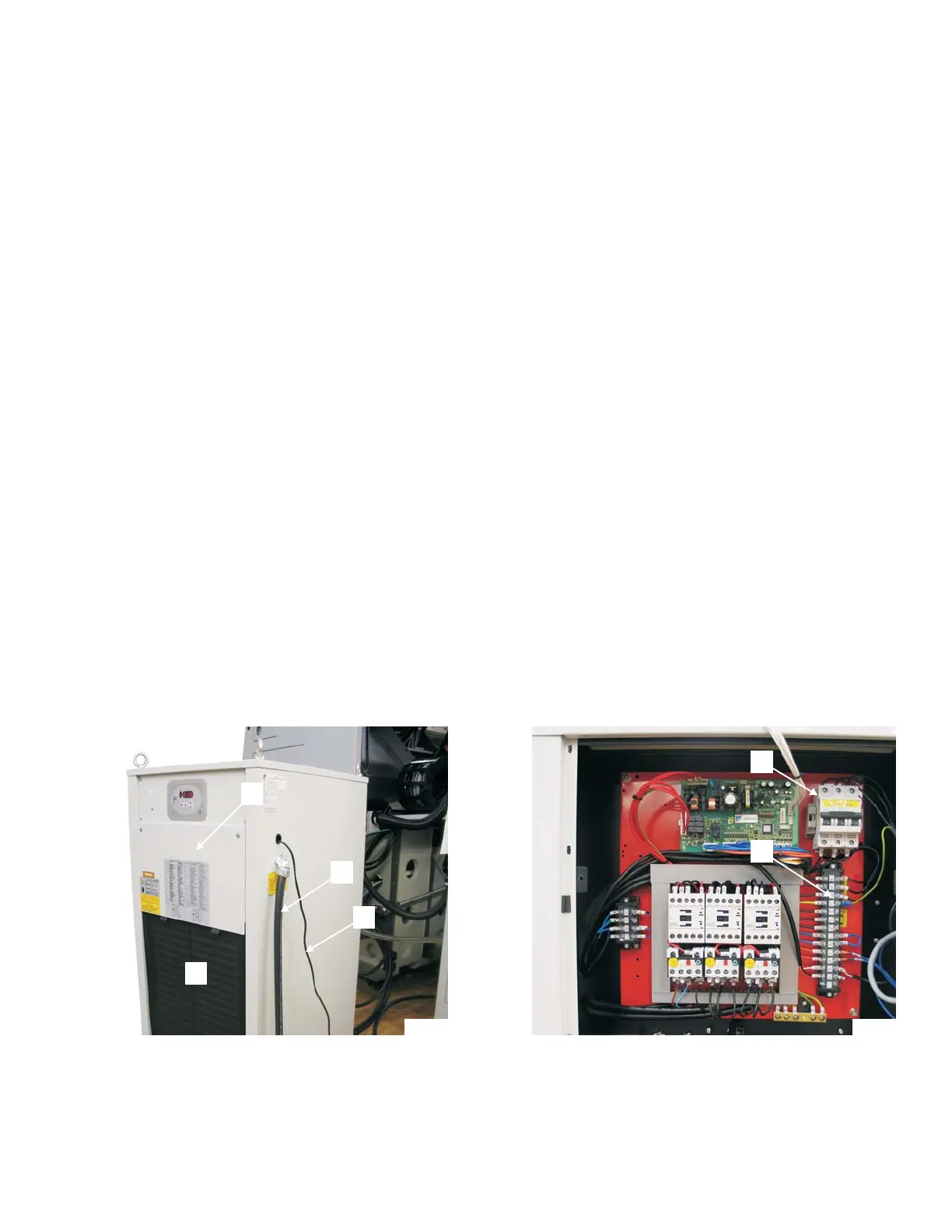

Figure 2.31 - Chiller Unit
Electrical Entrance
TP7874A
J
I
K
L
Figure 2.32 - Terminal Strip
Inside Chiller Unit
TP7877B
N
M
