Making Connections
Roku Streaming Stick
™
:

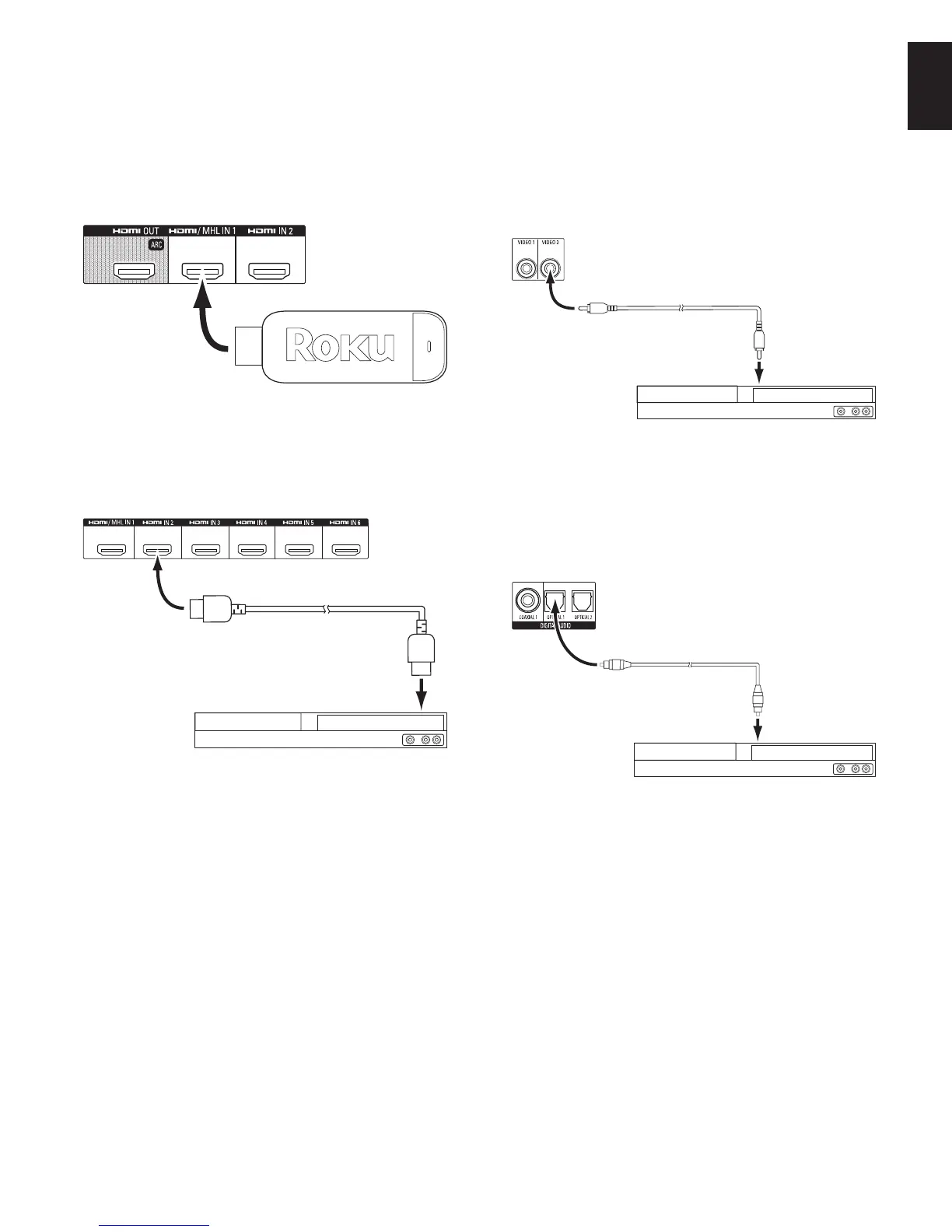

If you have a Roku Streaming Stick device, insert it into the AVR’s HDMI/MHL In connector.
NOTE: Do not insert the Roku Streaming Stick device into any other HDMI In connector.
AVR HDMI/MHL In Connector
Roku
®
Streaming Stick
Connect Your HDMI Devices
If any of your source devices have HDMI connectors, using them will provide the best
possible video and audio performance quality. Since the HDMI cable carries both digital
video and digital audio signals, you do not have to make any additional audio connections
for devices you connect via an HDMI cable.
AVR HDMI Connectors
HDMI-Equipped Source Device
HDMI Cable
(not supplied)
To HDMI
Output
NOTE: If you have HDMI devices (such as an Internet connection) already connected
directly to your TV, you can feed their sound to the AVR via the HDMI Out connector’s
Audio Return Channel, and they will not require additional connections to the AVR. AVR
1710/AVR 171 only: Only the HDMI Out 1 connection has the Audio Return Channel.
Connect Your Composite Video Devices
Use composite video connectors for video source devices that don’t have HDMI
connectors. You will also need to make an audio connection from the source device to
the AVR.
AVR Composite In Connectors
Composite-Equipped Source Device
Composite Video Cable (not included)
To Composite
Video Output
Connect Your Optical Digital Audio Devices
If your non-HDMI source devices have optical digital outputs, connect them to the AVR’s
optical digital audio connectors. NOTE: Make only one type of digital connection (HDMI,
optical or coaxial) from each device.
AVR Digital
Audio Connectors
Optical-Equipped Source Device
Optical Digital Audio
Cable (not supplied)
To Optical Digital
Audio Output

Harman Kardon AVR 171 Specifications

General

Receiver type	Surround
Output impedance	75 Ω
Input sensitivity	250 mV
Maximum input power	510 W
Audio output channels	- channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.07 %
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	6
AC (power) in	Yes
Composite video in	1
Digital audio optical in	2
Headphone connectivity	3.5 mm
Speakers connectivity type	-
AM band range	522 - 1620 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	iTunes
Cable length	1.8 m
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD
Volume control	Digital
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of products included	1 pc(s)
Receiver dimensions (WxDxH)	440 x 300 x 121 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	300 mm
Width	440 mm
Height	121 mm
Weight	5100 g
