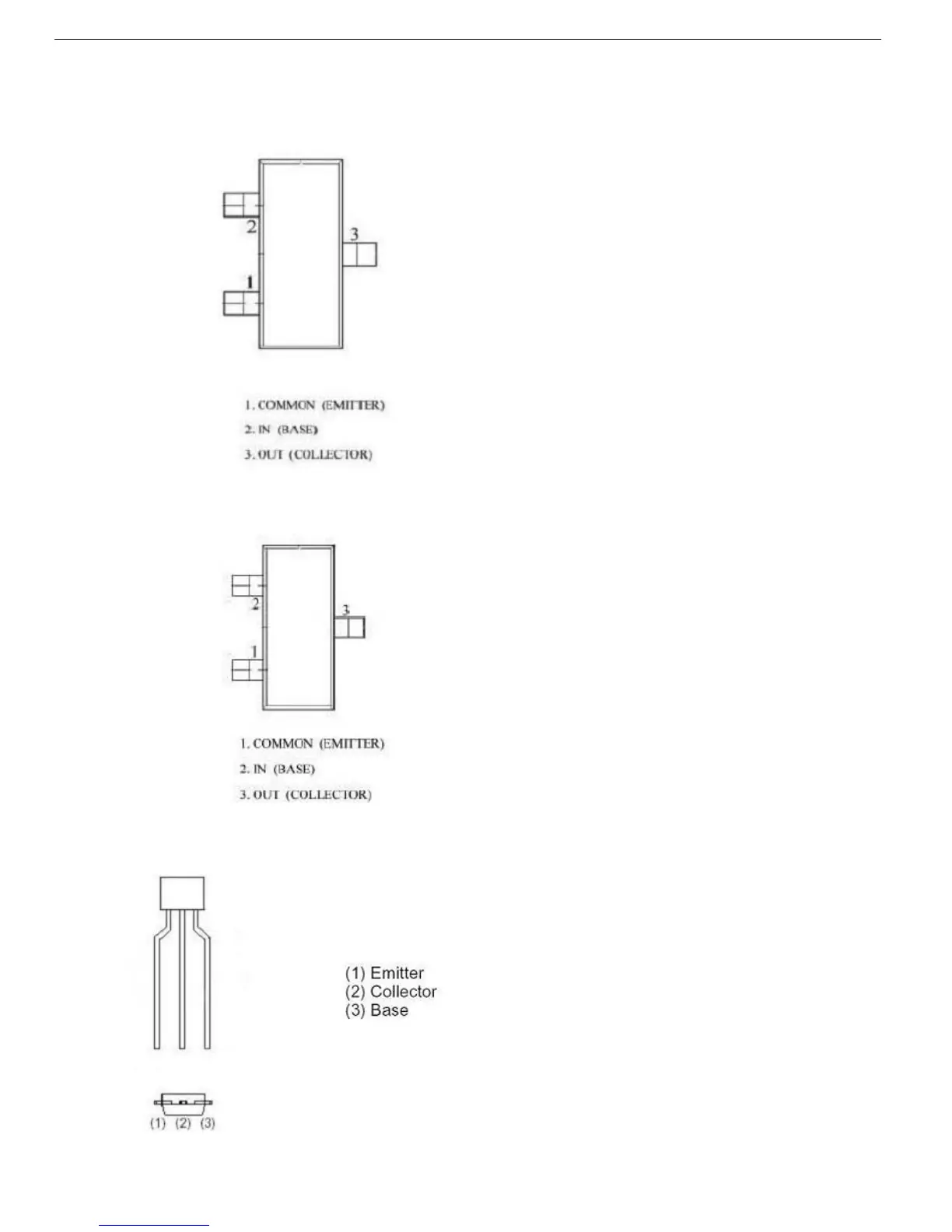

3. KTA1504Y (RS232: Q305 Q306)
(FRONT: Q703)
(PROCESSOR: Q601, 602, 621, 622, 624, 625, 627, 628, 630, 631, 104, 105, 107, 108
201, 202, 204, 205, 221, 222, 302, 303, 603, 604, 606, 607, 609, 610, 612, 613, 616
617, 690, 691, 752, 753)
4. KTC3875S (FRONT: Q701 Q702)
(VIDEO: Q101)
5. KTC3199-GR (RS232: Q401 VIDEO: Q100 Q102)
KTA1267-GR (RS232: Q405 VIDEO: Q107 Q108 Q109 Q124)
AVR745
