6. KTA1360 (MAIN: Q327 Q328 Q431 Q432 SURROUND: Q215 Q315 Q515)
-AVR745,645 ONLY
KTA1360 (MAIN: Q417 Q418 Q315 Q316 SURROUND: Q208 Q508 Q308)
-AVR445 ONLY
KTC3114 (MAIN: Q701 Q702 Q703 Q704 SURROUND: Q214 Q314 Q514)
KTC3423 (MAIN: Q323 Q324 Q429 Q430 SURROUND: Q213 Q313 Q513)
-AVR745,645 ONLY
KTC3423 (MAIN: Q419 Q420 Q317 Q318 SURROUND: Q209 Q509 Q309)
-AVR445 ONLY
7. 2SA1859A (MAIN: Q329 Q330 Q433 Q434 SURROUND: Q216 Q316 Q516)
2SC4883A (MAIN: Q331 Q332 Q435 Q436 SURROUND: Q217 Q317 Q517)
8. KTA1268BL (MAIN: Q311 Q312 Q410 Q413 Q414 SURROUND: Q101 Q206 Q306 Q506)
KTC3198BL (MAIN: Q307 Q308 Q407 Q408 Q426 Q441 SURROUND: Q204 Q304 Q504)
KTC3200BL (MAIN: Q301 Q302 Q303 Q304 Q305 Q306 Q313 Q314 Q337 Q338 Q401 Q402
Q403 Q404 Q405 Q406 Q409 Q415 Q416 Q425)
(SURROUND: Q201 Q202 Q203 Q207 Q220 Q301 Q302 Q303 Q307 Q320
Q501 Q502 Q503 Q507 Q520)
KTD1302 (MAIN: Q601)
MPSA06 (DSP: Q511 FRONT: Q821 SUPPLY: Q102, Q102)
MPSA56 (FRONT: Q823)
1 2 3
1 2 3

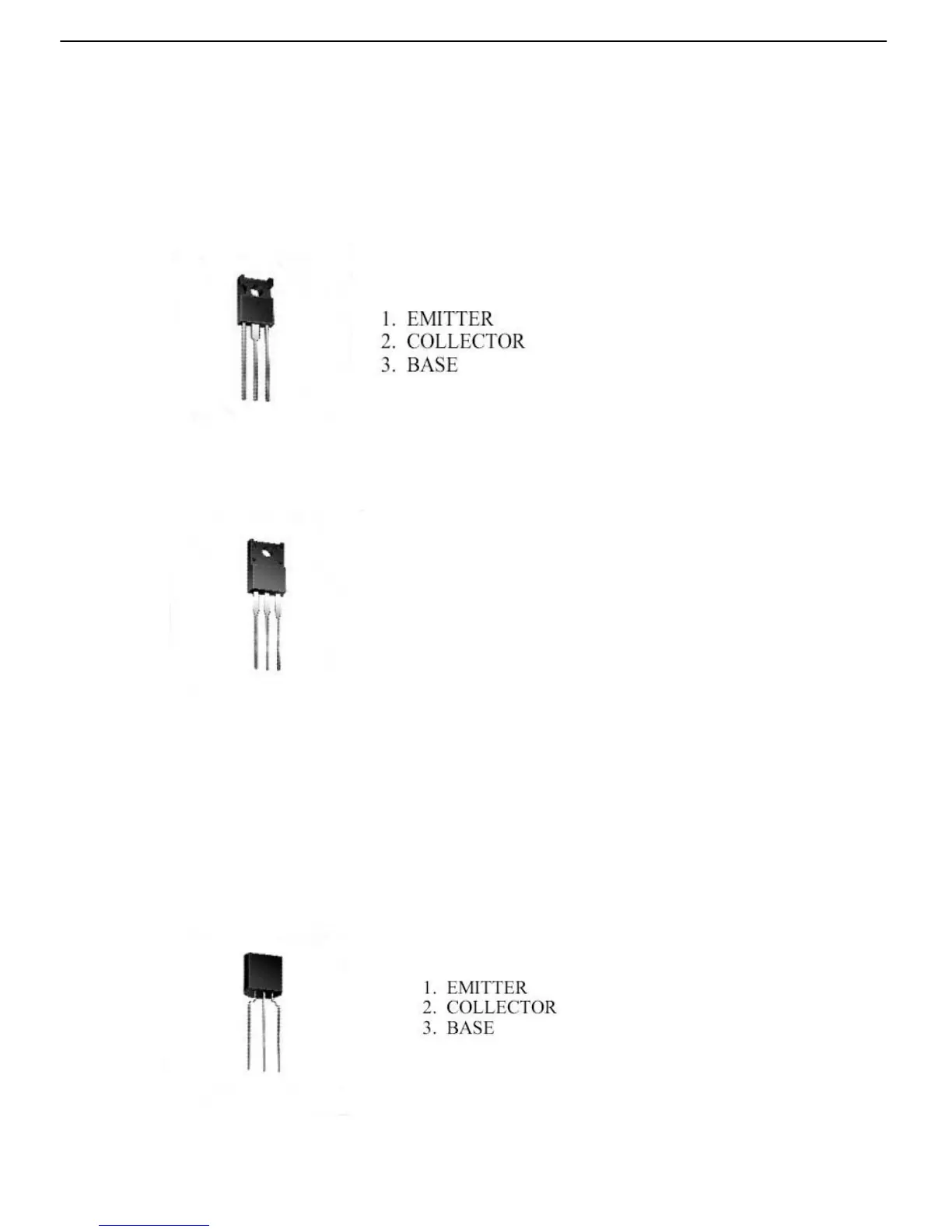

1.BASE
2.COLLECTOR
3.EMITTOR
1 2 3
