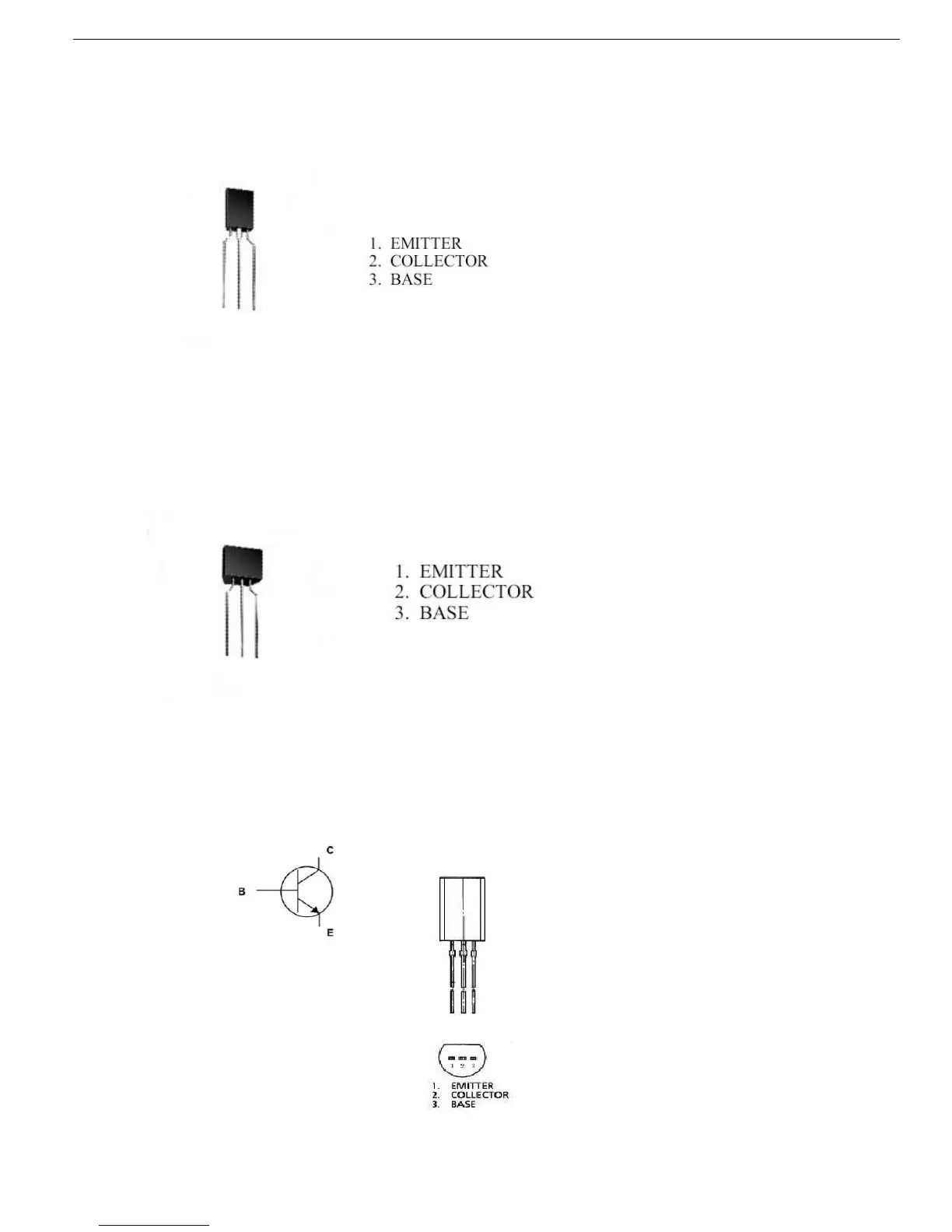

9. KTA1024Y (MAIN: Q315 Q316 Q319 Q320 Q417 Q418 Q421 Q422 Q442
SURROUND: Q208 Q211 Q308 Q311 Q508 Q511)-AVR745,645 ONLY
KTC3206Y ( MAIN: Q317 Q318 Q321 Q322 Q419 Q420 Q423 Q424
SURROUND: Q209 Q212 Q309 Q312 Q509 Q512)-AVR745,645 ONLY
10. KRA107M (DSP: Q851 RS232: Q301, 302)
KRC107M (MAIN:C443)
11. 2SA1145Y (MAIN: Q309 Q310 Q411 Q412 SURROUND: Q205 Q305 Q505)
