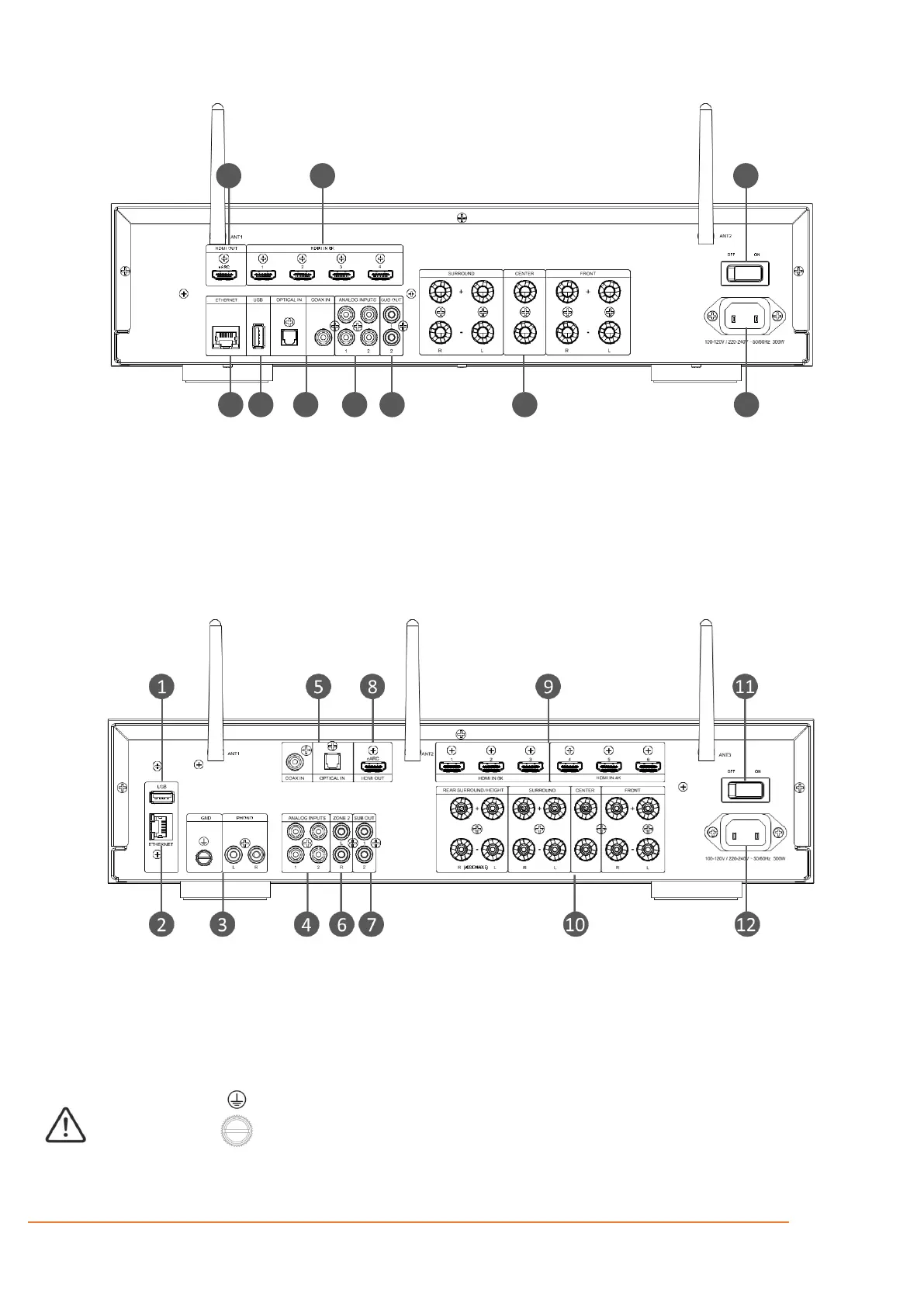

Rear Panel
MA310 and MA510
1. HDMI Output
2. HDMI Inputs
3. Ethernet Socket (
MA510 only)
4. USB Input
5. Digital Inputs
6. Analog Inputs
7. Subwoofer Outputs
8. Speaker Level Output Connectors
9. Power Switch
10. Power Input
MA710
1. USB Input
2. Ethernet Socket
3. Phono Input and Ground
4. Analog Inputs
5. Digital Inputs
6. Zone 2 “PARTY” Output
7. Subwoofer Outputs
8. HDMI Output
9. HDMI Inputs
10. Speaker Level Output Connectors
11. Power Switch
12. Power Input
Phono Ground This terminal must not be used as a safety earth.
