Speaker Positions
GETTING THE SPEAKERS PROPERLY INSTALLED:
Use the Dolby Atmos Installation Guide for a general guide for the locations of speakers. Here are a few tips to get you
started:
• Locate the front left and right loudspeakers no further than +/- 30° off center axis of the primary listening position.
• Free standing loudspeakers should be placed on a solid platform, free of wobble, as it will offer better definition and
detail. Adjust spikes etc. to ensure stability.
• In-wall and in-ceiling loudspeakers should be installed properly secured with suitable fixings to avoid resonance and
vibration. Where possible, adjust drive unit angles and crossover trim switches as required for best sound.
Speaker Placement

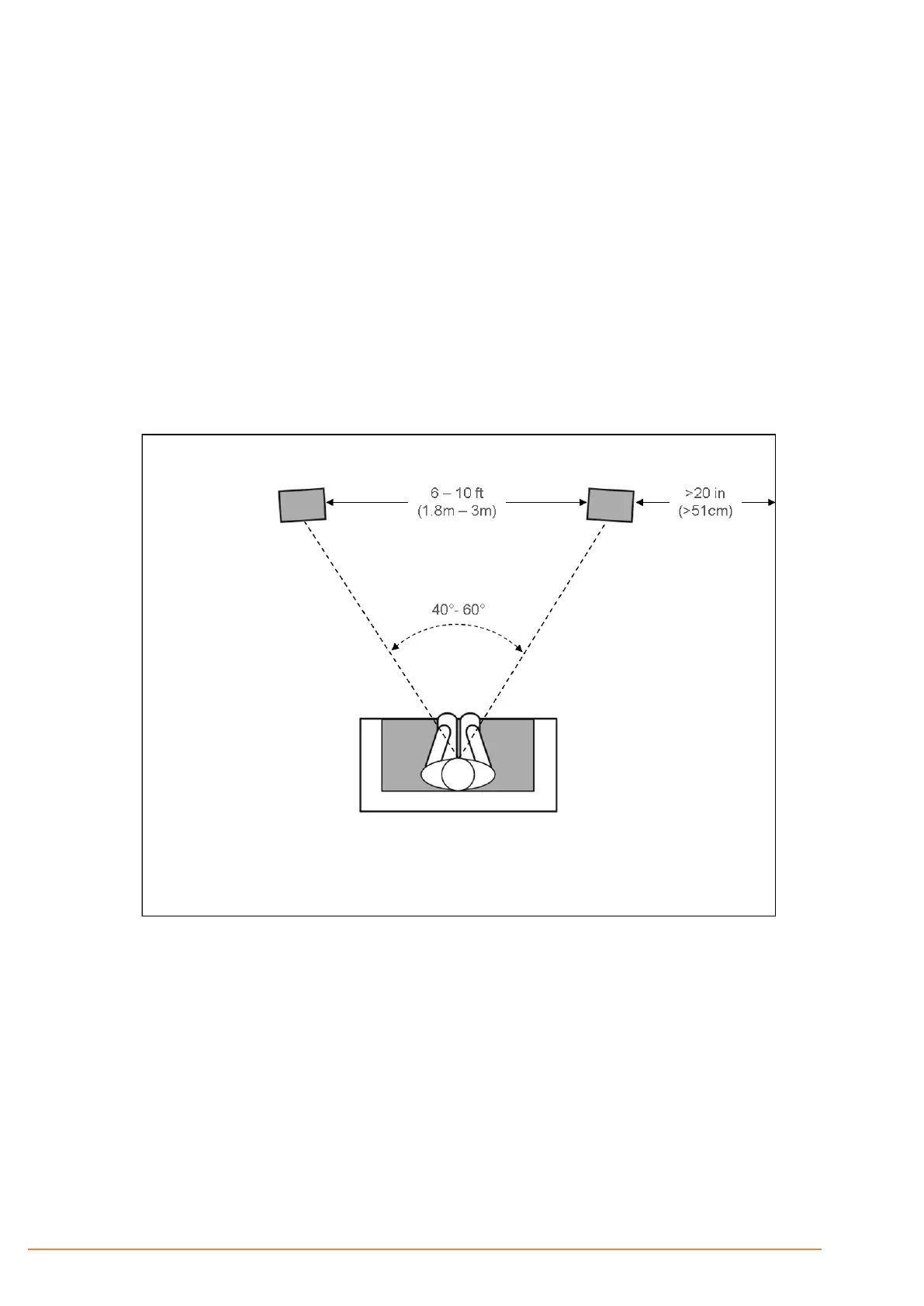

LEFT AND RIGHT CHANNELS
For the best results, place the speakers 6 – 10 feet (1.8m – 3m) apart. Angling the speakers toward the listening position
improves imaging. The speakers will produce the most accurate soundstage when the angle between the listener and the
speakers is between 40 and 60 degrees.
