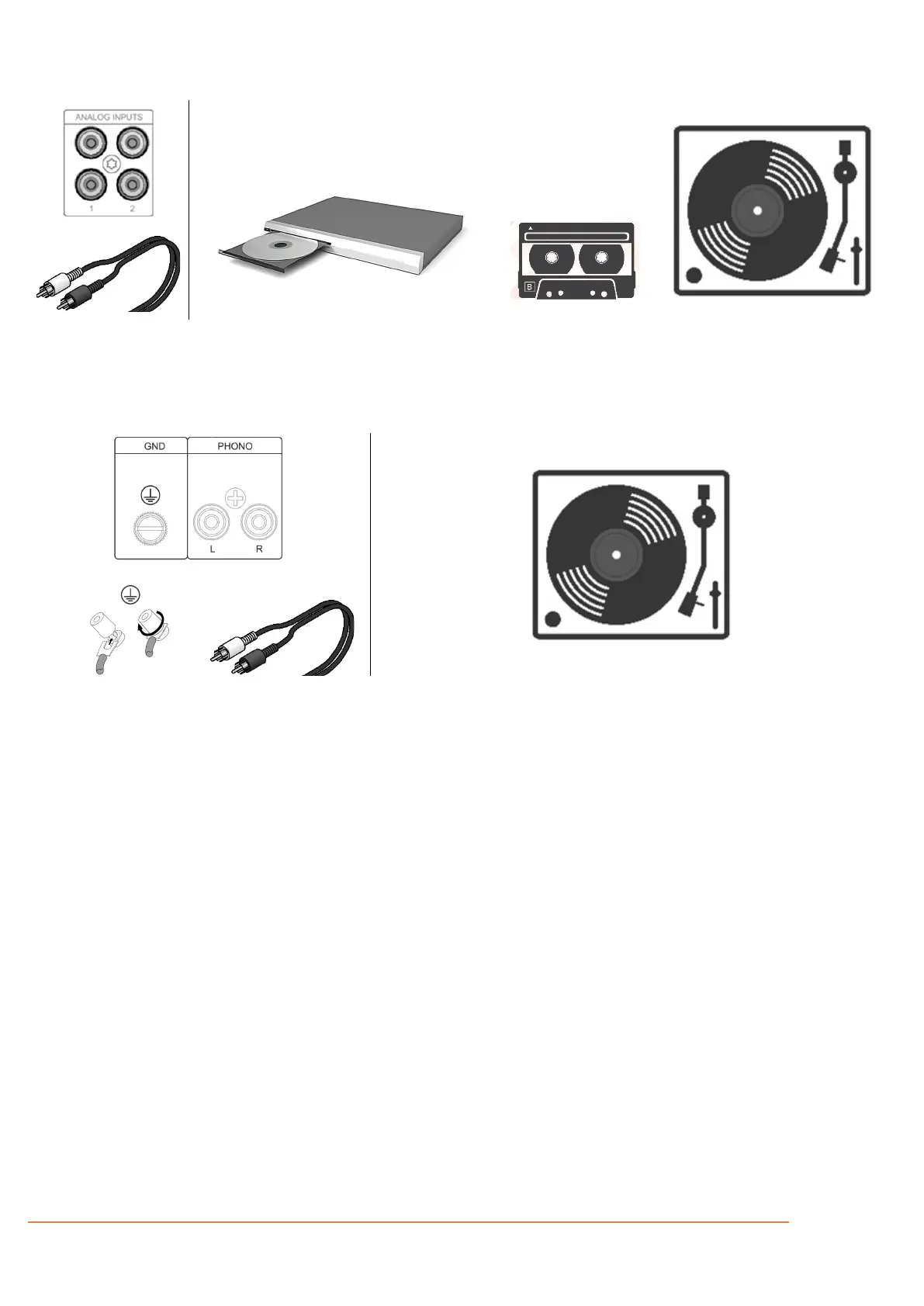

ANALOG
Provides a line-level RCA-type connection (singe-ended plus shield). The most common sources of analog playback are
compact-discs, cassette tapes and pre-amplified vinyl records.
PHONO (MA710 only*)
Provides an RCA-type connection (singe-ended plus shield) and a ground terminal, for turntables equipped with a moving
magnet (MM) phono cartridge.
Note: The ground terminal (GND) of this unit is not for safety grounding purposes. Depending on the turntable, connecting the ground line to this terminal may
reduce a significant amount of noise.
