INSTALLER

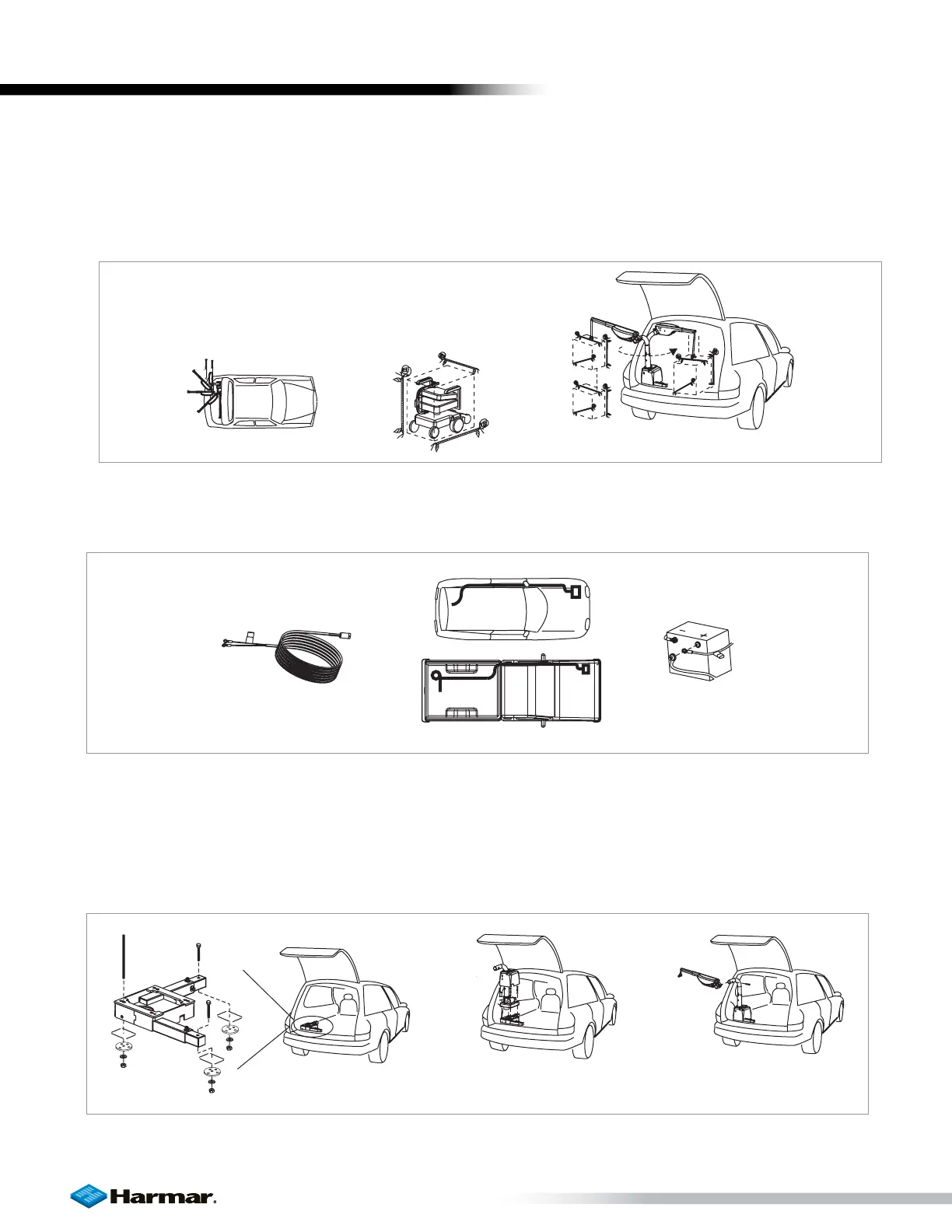

INSTALLATION OVERVIEW
1. Trial Fit for Base Mounting Location
To install the lift, you’ll most likely need to drill three holes in the vehicle’s floor. Do not drill until you
simulate the lift’s range of motion inside the vehicle. Also simulate the object to be loaded. Determine an
accurate location for the lift while maximizing the remaining cargo area. [Figure 8-1]
2. Vehicle Wiring Harness
Install the vehicle wiring harness first, power will be available to move the lift, making installation easier.
[Figure 8-2]
3. Installing Lift Components
You’ll install the base adapter in the chosen location based on the trial fit procedure. Install base of lift
onto the base adapter, then install the lifting arm. [Figure 8-3]
PREPARATION
Floor
Floor
Floor
Figure 8-3
Figure 8-2
Figure 8-1
