INSTALLER
LIFT INSTALLATION

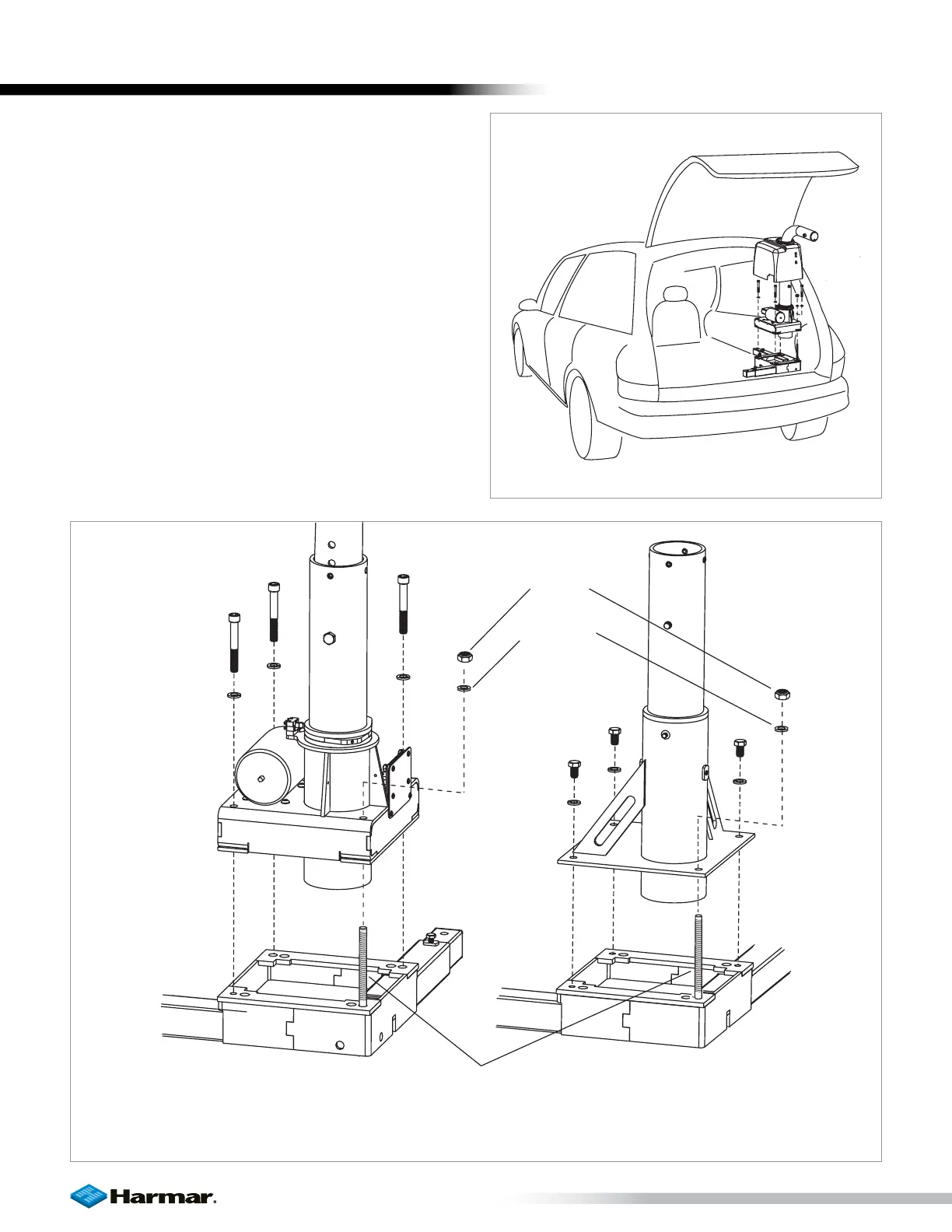

1. Raise the plastic base cover when the base
has been fastened to the vehicle floor, and
attach the lift to the base as shown. [Figure 20-1]
2. Be sure to compress all split lock washers
when tightening all fasteners.
3. Cut off remaining All Thread after it is
tightened against the washer. This allows
nut removal to deburr thread as it is removed.
[Figure 20-2]
AL-225, AL-425
and AL-435 Series
AL-215
ONLY
HEXNUT
SPLIT LOCK
WASHER
Cuto remaining all thread
once nutistightenedagainst
washer.This willallow nut
removal to deburr threadas
Figure 20-1
Figure 20-2
INSTALLATION
Cut off remaining all
thread once nut is tightened
against washer.
