Inside Lifts - Installation & Owners Manual TEC0091 2016JUN30 P/N: 630-00076-Rev A |
| www.harmar.com | 800-833-0478
© 2016 Harmar All Rights Reserved
15
INSTALLER
VEHICLE’s THRESHOLD
U
SED FOR SEAT
AT
TACHMENT
P
OINT
TELESCOPING LEG
SWIVEL
LEG
VEHICLE’s
THRESHOLD
LLAWsELCIHEV
CHOOSE
HOLE FOR
CLOSEST
TO WALL
POSITION
1" or
2”
OBTAIN
DISTANCE
Foldupthird
rowseating

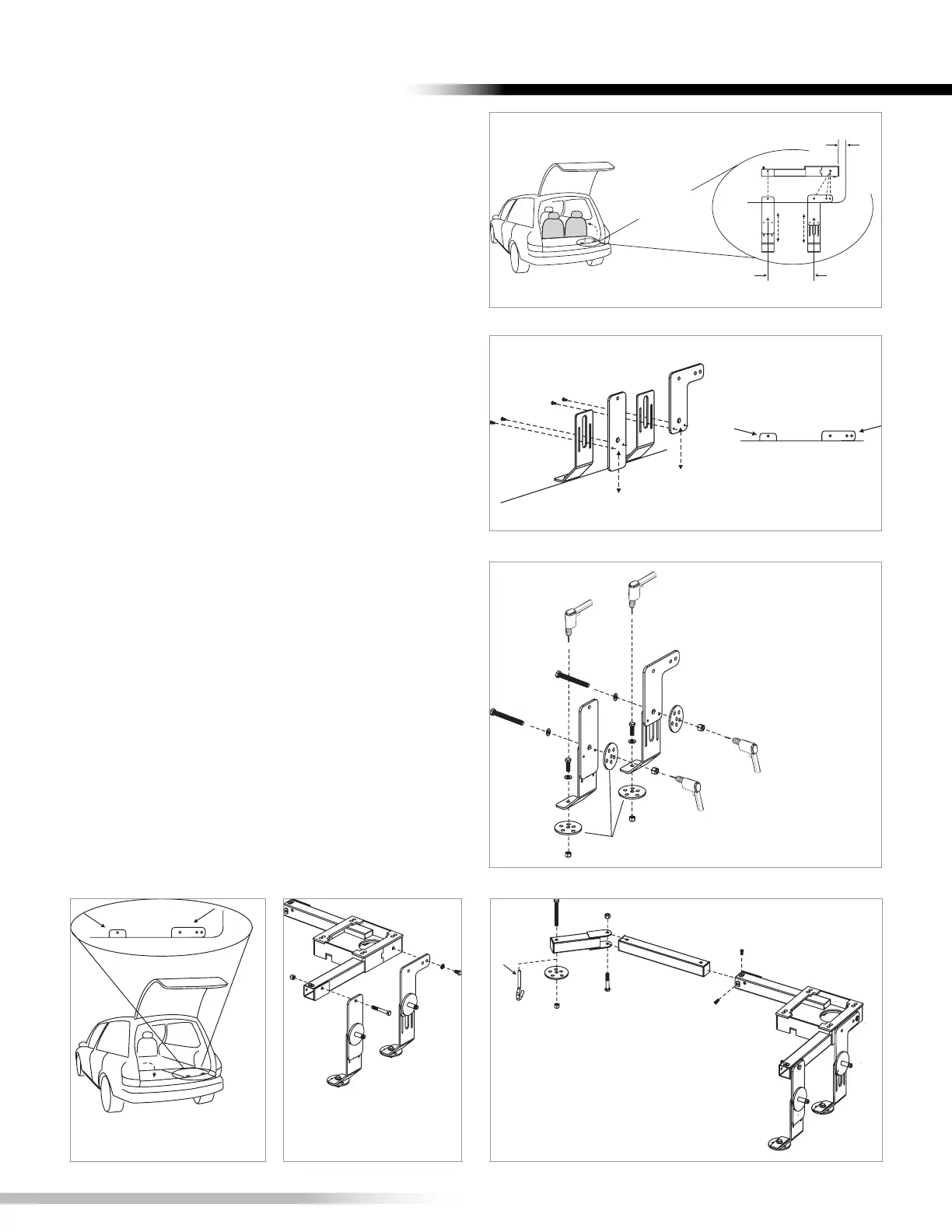

Figure 15-1
PLACE ON
WELL FLOOR
THRESHOLD
Figure 15-2
INSTALLATION
WASHERS
Drilltwo 3/8"h
oles
through back well
wall using joiners
as templateto
acceptfully
threaded
3/8" bolts.
Figure 15-3
Figure 15- 4 Figure 15-5 Figure 15- 6
BASE INSTALLATION:
3
RD
ROW FOLDING SEATS
1. Place vertical joiners on back wall of seating
well corner. [Figure 15-1] Use base as template for
position.
2. Establish height by having mounting holes
show over threshhold. [Figure 15-2] Attach joiners,
using small screws provided, to lock height.
3. Preferred Installation. Mandatory when lifting
heavier payloads.
Drill two 3/8” holes in floor of well using
joiners as template. Fasten 3/8” hardware
(x2). [Figure 15-3]
PLUS Drill two 3/8” holes through back well
wall using joiners as template to accept full-
threaded 3/8” bolts.
VERIFY THAT ALL MATING SURFACES ARE FLUSH.
4. Fold third-row seating back into well. Verify
vertical joiner mount holes are above threshold.
[Figure 15-4]
5. Attach vertical joiners to base using supplied
hardware as indicated. [Figure 15-5]
6. Insert telescoping leg. Attach swivel leg. Drill,
or where possible, use J-hook to seat attachment
point and secure leg. [Figure 15-6]
Tighten all fasteners.
INSTALLATION
