Harmar Mobility AL425 Axis II - Page 18

| www.harmar.com | 800-833-0478 © 2016 Harmar All Rights Reserved
16
INSTALLER
FLOOR
FLOOR
USE FOR SEAT
ATTACHMENT
POINT
HHCS,
3/8-16x
2-3/4”L
HHCS,
3/8-16 x
5/8”L
3/8” SPLIT
LOCK WASHER
NUT, NYLOC, 3/8-16
NUT, NYLOC, 3/8-16
NUT, NYLOC, 3/8-16
NUT, NYLOC, 3/8-16
NUT, NYLOC,3/8-16
WASHER,3/8”ID
WASHER,3/8”ID
HHCS,3/8-16x1-1/4”L
HHCS,3/8-16x1-1/4”L
INSTALLATION
WASHER
INSTALLATION
WASHER
INSTALLATION
WASHER
INSTALLATION
WASHER
PhPnHd,
10-32x7/16”L
(x2)
HHCS,
3/8-16 x3.50" L
HHCS,
3/8-16 x3.50" L
PhPnHd,
10-32x7/16”L
(x2)
HHCS,1/4-28x1/2”L
HHCS,1/4-28x1/2”L
J-HOOK
INSTALLATION
WASHER
HHCS,3/8-16x3-1/2”L
NUT, NYLOC, 3/8-16
NUT, NYLOC, 3/8-16
HHCS,3/8-16x2-1/4”L

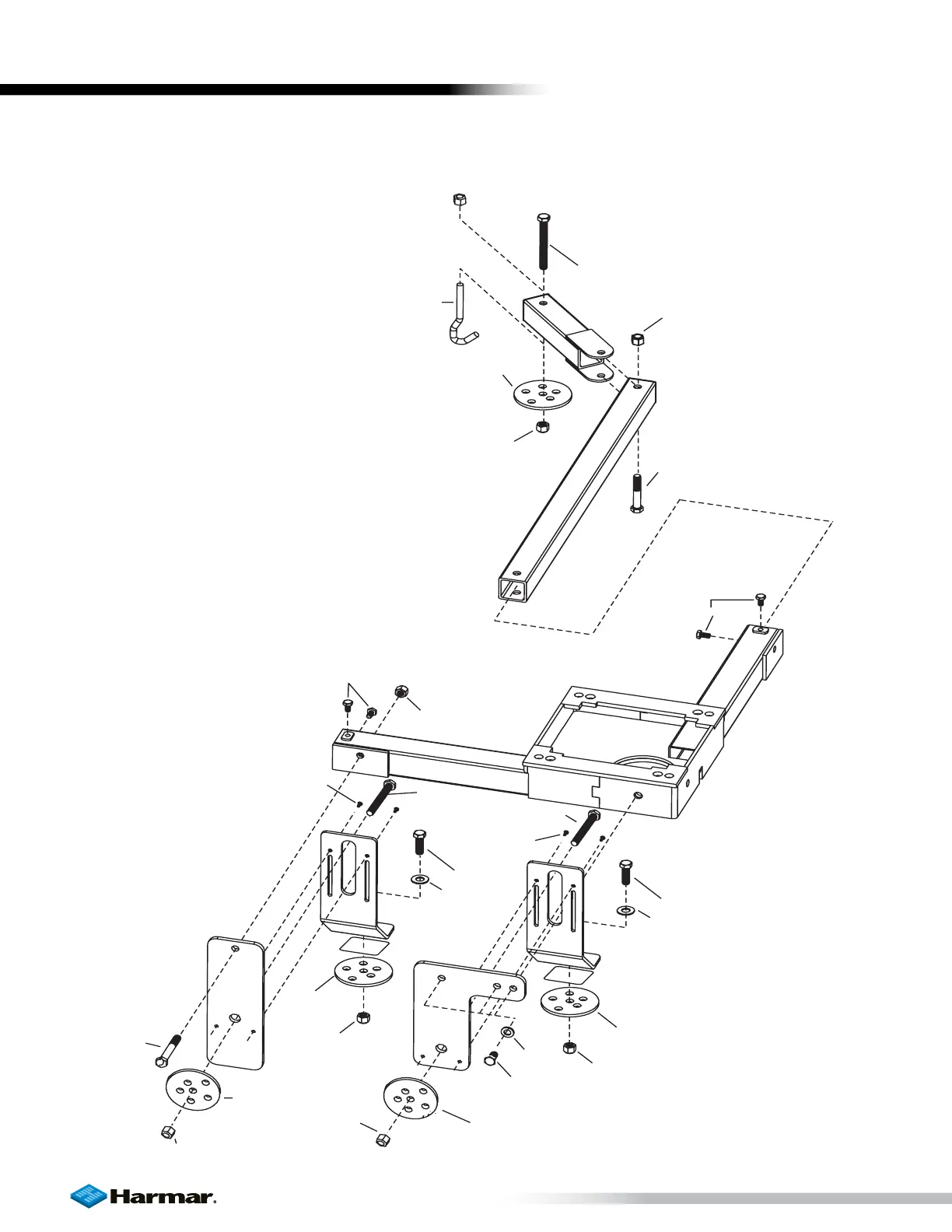

EXPLODED VIEW OF ASSEMBLY FOR 3RD ROW INSTALLATION
INSTALLATION
