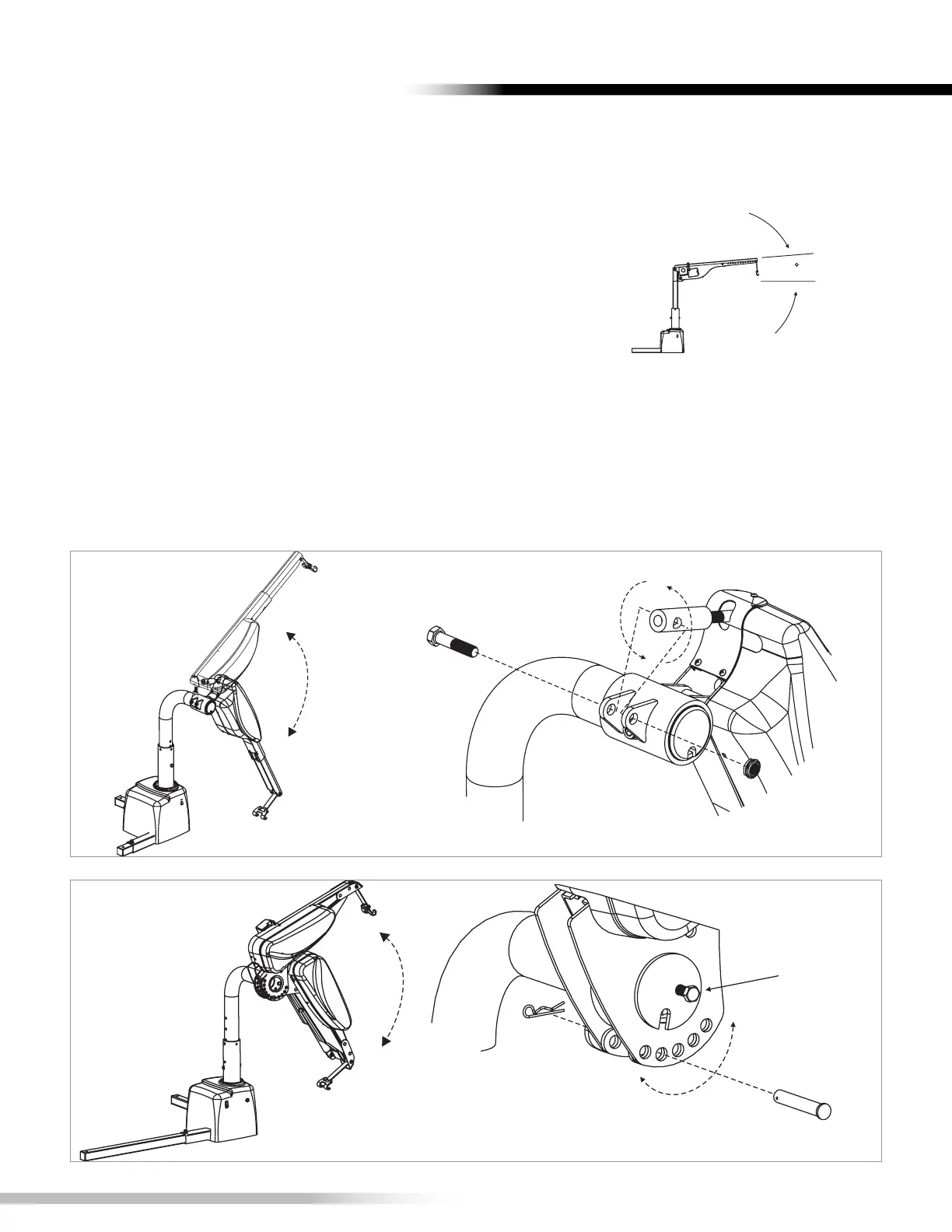

ADJUSTMENTS : PITCH
AL425
• Remove bolt.
• Rotate turnbuckle.
• Replace bolt. [Figure 23-1]
AL435 / AL435T
• Loosen bolt.
• Remove pin.
• Rotate arm.
• Replace pin.
• Tighten bolt. [Figure 23-2]
5
LIFT ADJUSTMENTS
Figure 23-1
Figure 23-2
NOTE: The AL215 and AL225 are manufactured
with a 6 degree pre-load so pitch adjustment is not
necessary.
