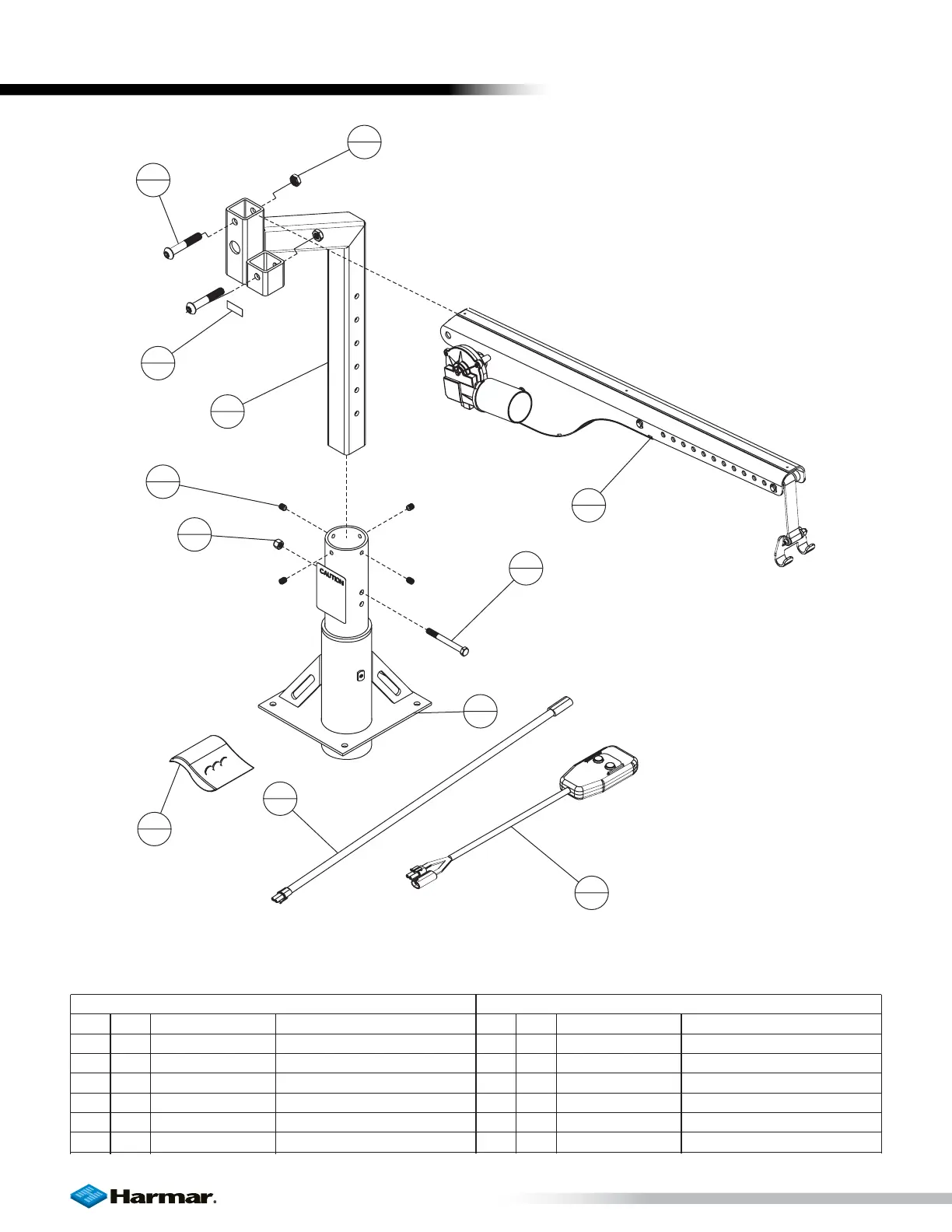

Harmar Mobility AL425 Axis II - Exploded Views

| www.harmar.com | 800-833-0478 © 2016 Harmar All Rights Reserved
28
INSTALLER
1
1
2
1
3
1
4
1
5
4
6
2
9
1
10
1
12
4
8
1
11
2
7
1
ASSEMBLYPARTS
ASSEMBLY PARTS
ITEM
ITEM
QTY
QTY
PART NO.
PART NO.
DESCRIPTION
DESCRIPTION
11 200-3B01-A BASE COVER ASSEMBLY
21 240-ZB01-C SQUARE POST
31 260-ZB01-A ARM ASSEMBLY
41 ALA06550 AL065 HARNESS
54 ALA99995 STICKER, SERIAL NUMBER
62 BHCS-0_50-13--3_00-SS BUTTONHEAD, 1/2-13X3.00,SS
7
1H10-2B01-AHARDWARE, KIT, MANUALBASEMOUNTING
8
1H200002BUTTONHANDCONTROL
9
1 HHCS-0_37-16--3_50-Z HEX HEAD, 3/8-16 X3.50, ZP
10
1NUT-0_37-16-NYLOCK-Z NYLOCK NUT,3/8-16, ZP
11
2NUT-0_50-13-NYLOCK-Z NYLOCK NUT,1/2-13, ZP
12
4 SSCP-0_37-16--0_50-Z SET SCREW 3/8-16 X0.50, ZP
1
1
2
1
3
1
4
1
5
4
6
2
9
1
10
1
12
4
8
1
11
2
7
1
ASSEMBLYPARTS
ASSEMBLY PARTS
ITEM
ITEM
QTY
QTY
PART NO.
PART NO.
DESCRIPTION
DESCRIPTION
11 200-3B01-A BASE COVER ASSEMBLY
21 240-ZB01-C SQUARE POST
31 260-ZB01-A ARM ASSEMBLY
41 ALA06550 AL065 HARNESS
54 ALA99995 STICKER, SERIAL NUMBER
62 BHCS-0_50-13--3_00-SS BUTTONHEAD, 1/2-13X3.00,SS
7
1H10-2B01-AHARDWARE, KIT, MANUALBASEMOUNTING
8
1H200002BUTTONHANDCONTROL
9
1 HHCS-0_37-16--3_50-Z HEX HEAD, 3/8-16 X3.50, ZP
10
1NUT-0_37-16-NYLOCK-Z NYLOCK NUT,3/8-16, ZP
11
2NUT-0_50-13-NYLOCK-Z NYLOCK NUT,1/2-13, ZP
12
4 SSCP-0_37-16--0_50-Z SET SCREW 3/8-16 X0.50, ZP
AL215
EXPLODED VIEWS
