WARNING: Disconnect primary power prior to servicing.
Installation & Initial Turn-On
2.7.1.2 Extended Metering
Extended metering can also be connected to TB1 terminals. See Figure 2-15 for
typical extended metering connections.

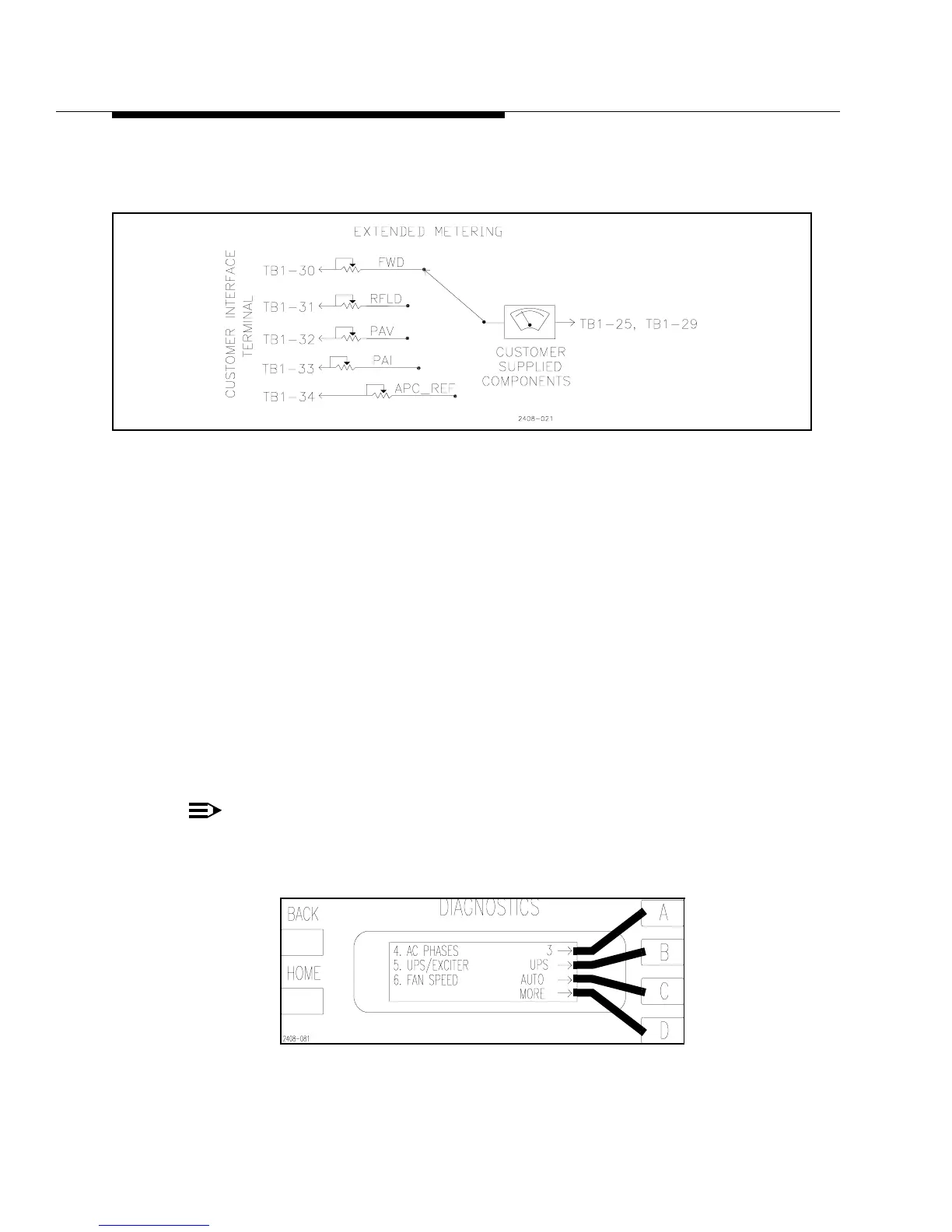

Figure 2-15 Extended Metering
2.7.2 UPS IN/Remote Exciter Select,
Configurable Input TB1-9
The remote input at TB1-9 is a software configurable input which is set via the
Diagnostics Display Menu. It can be used as either a UPS Mode select input or as a
Remote Exciter select when a second exciter is installed in the transmitter. To
configure the input using the Diagnostics Display Menu press [HOME, MORE,
CONFIGURATION A,D]. This should bring up the screen shown in Figure 2-16.
The Factory default setting is shown as “UPS”. This means the input is ready to be
used as the UPS Mode select. To use TB1-9 as a Remote Exciter Select input press
[B]. This will switch the display to read “EXC”. This re-configures the TB1-9 input
so that when it is momentarily pulsed low, the transmitter will switch to the other
exciter. If the TB1-9 is pulsed low again, the transmitter will switch back to the first
exciter.
NOTE:
This input is simply a switch command and does not care which exciter was on
the air to begin with. For example, if the Main exciter is on the air, then it will
switch to the alternate, but if the alternate is on the air it will switch to the main.
Figure 2-16 Configurable Input Select
[HOME, MORE, CONFIGURATION A,D]
