WARNING: Disconnect primary power prior to servicing.
Operator Guide
3.4.6 Fault Logging
The Fault Log is located under “Fault” in the Main Menu. Pressing Fault will take
you to the screen shown in Figure 3-8. This screen gives you a choice of resetting
the transmitter faults and fault log (and clearing any red indicators) or viewing the
Fault Log.

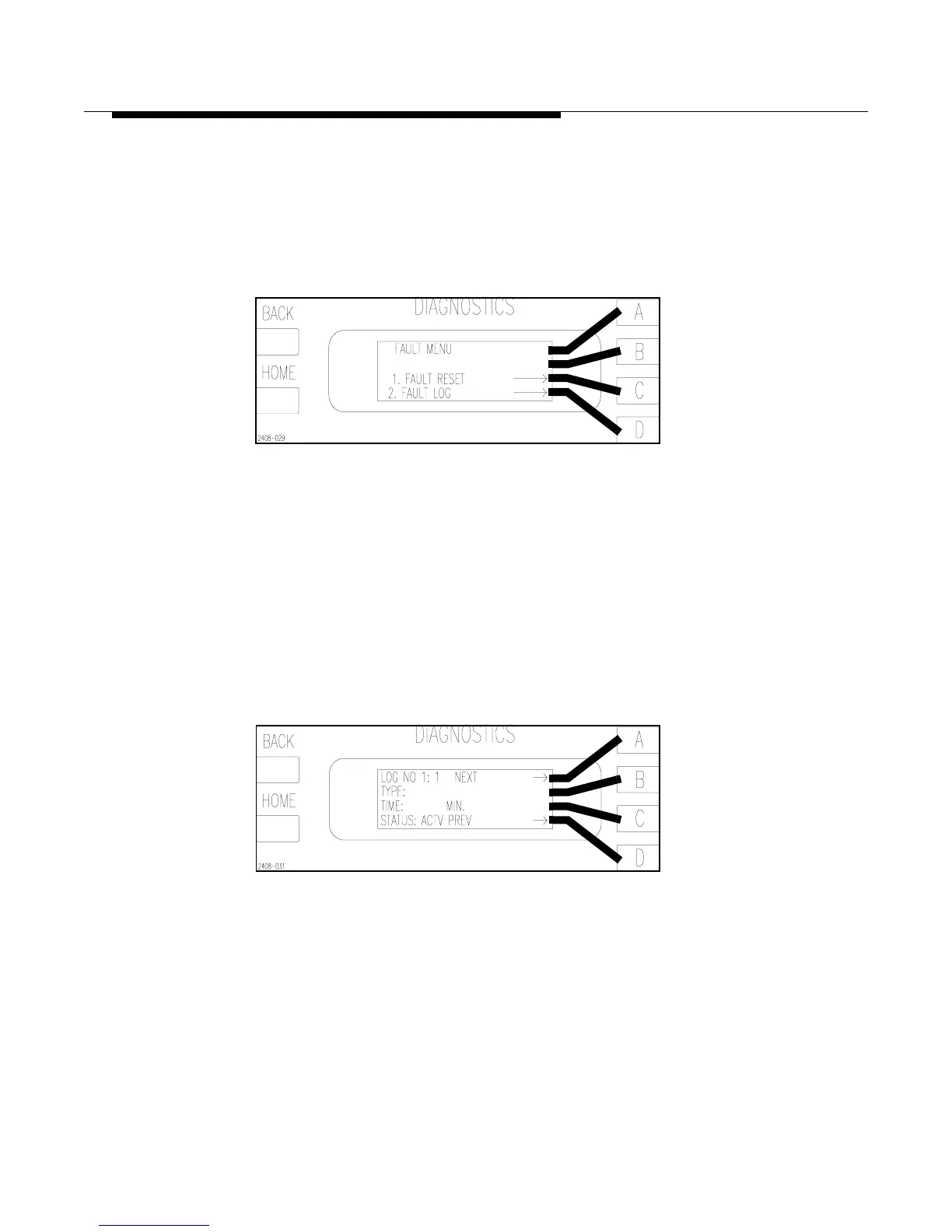

Figure 3-8 Fault Menu
[HOME, FAULT]
Pressing D then takes you to the Fault Log, shown in Figure 3-9. This screen shows
the latest of a possible 32 faults as designated by “LOG No. 1 of N”, where N would
be the total number of faults present. “Type” gives the name of the fault. The
individual faults and their cause are given in Section VI, Troubleshooting. “Time”
gives the elapsed time since the fault occurred, not the actual time at which it
occurred. “Status” tells you whether the fault is cleared or is still active. Pressing the
D or PREV button will take you to the previous fault in the display.
Figure 3-9 Fault Log
[HOME, FAULT D]
