3-4L43C, 3-4M43, 3-4M43Z Maintenance
HATZ
53Manual

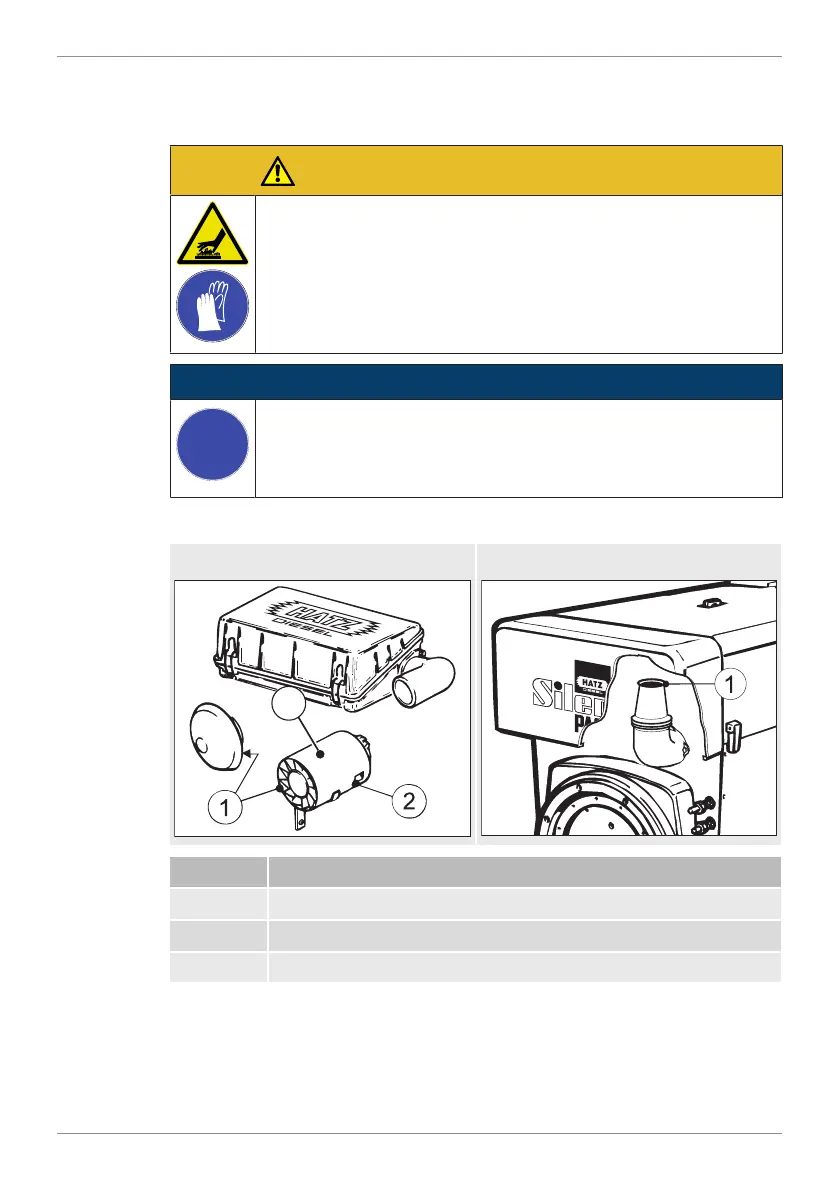

8.2.3 Checking the intake area of the combustion air
Safety notes
CAUTION
Danger of burns.
There is a danger of burns when working on a hot engine.
Let the engine cool.
Wear safety gloves.
NOTICE
i
In case of heavy contamination, shorten the maintenance inter-
vals accordingly (see chapter 8.2.2 Maintenance plan, page 51).
Overview
3-4M43 and 3-4M43Z
3
3-4L43C
Pos. Designation
1 Intake opening for combustion air
2 Dust outlet opening
3 Cyclone (option)
