Maintenance 3-4L43C, 3-4M43, 3-4M43Z
76
HATZ
Manual
8.2.15 Renewing the poly v belt and checking the function of the switch-off
unit
Safety note
NOTICE
i
When changing the belt:
Always check the function of the switch-off unit. The switch-
off pin must emerge by spring force, or else the machine will
not switch off automatically if the belt tears.
If the grooves are broken off or bent, renew the damaged
pulley.

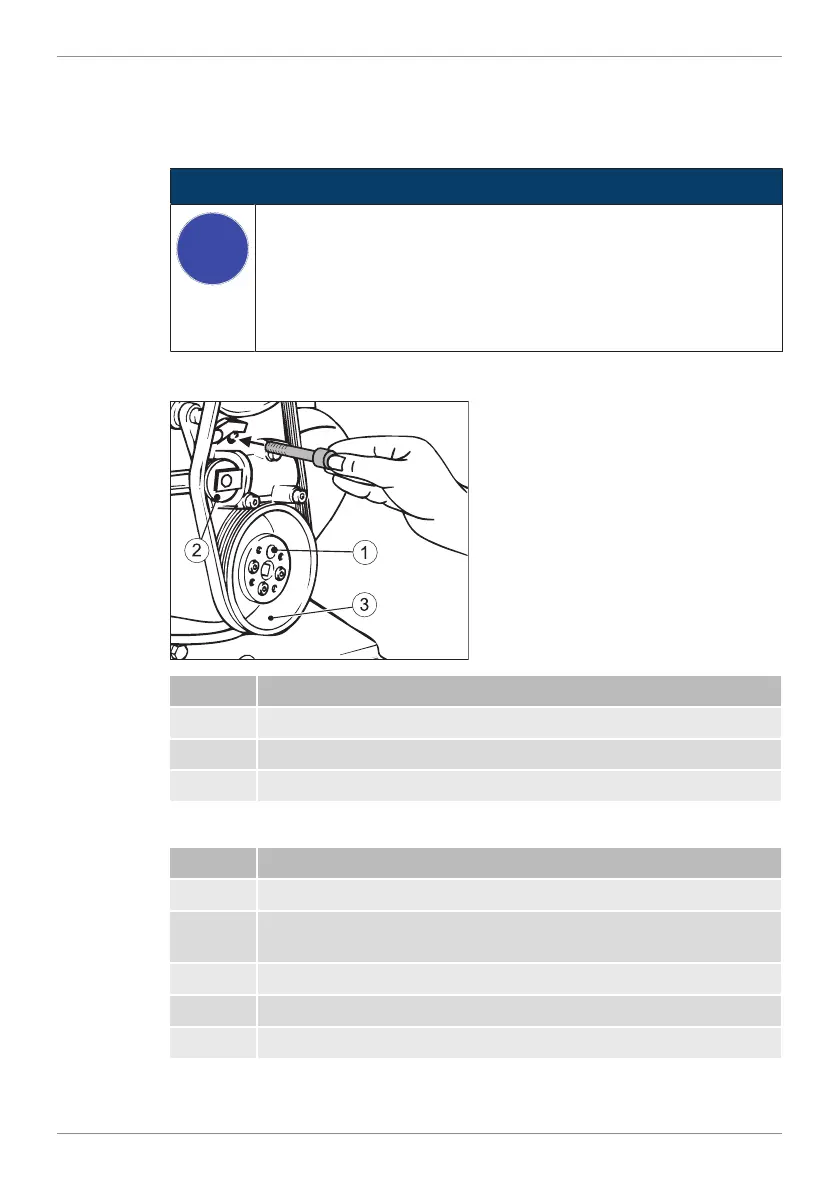

Overview — Removing the poly v belt
Pos. Designation
1 Cylinder screw
2 Tension pulley
3 Pulley
Procedure — Removing the poly v belt
Step Activity
1 Unscrew one cylinder screw (1) from the pulley (3).
2 Push back the tension pulley (2) and lock it using the cylinder
screw (1).
3 Unscrew the pulley (3).
4 Check the pulley (3) for broken or bent grooves.
5 Remove the poly v belt.
