Hatz M Series User Manual

3-4L43C, 3-4M43, 3-4M43Z Maintenance
HATZ
65Manual
8.2.10 Maintaining the dry air filter
NOTICE
i
▪ Clean the filter cartridge immediately if, at maximum speed,
the combined indicator on the instrument box flashes 14
times.
▪ The air filter cartridge either needs to be replaced, or
cleaned or checked depending on the degree of contamina-
tion.
▪ Renew the filter cartridge after a use period of 500 operating
hours.
▪ Four cylinder engines have two filter cartridges.

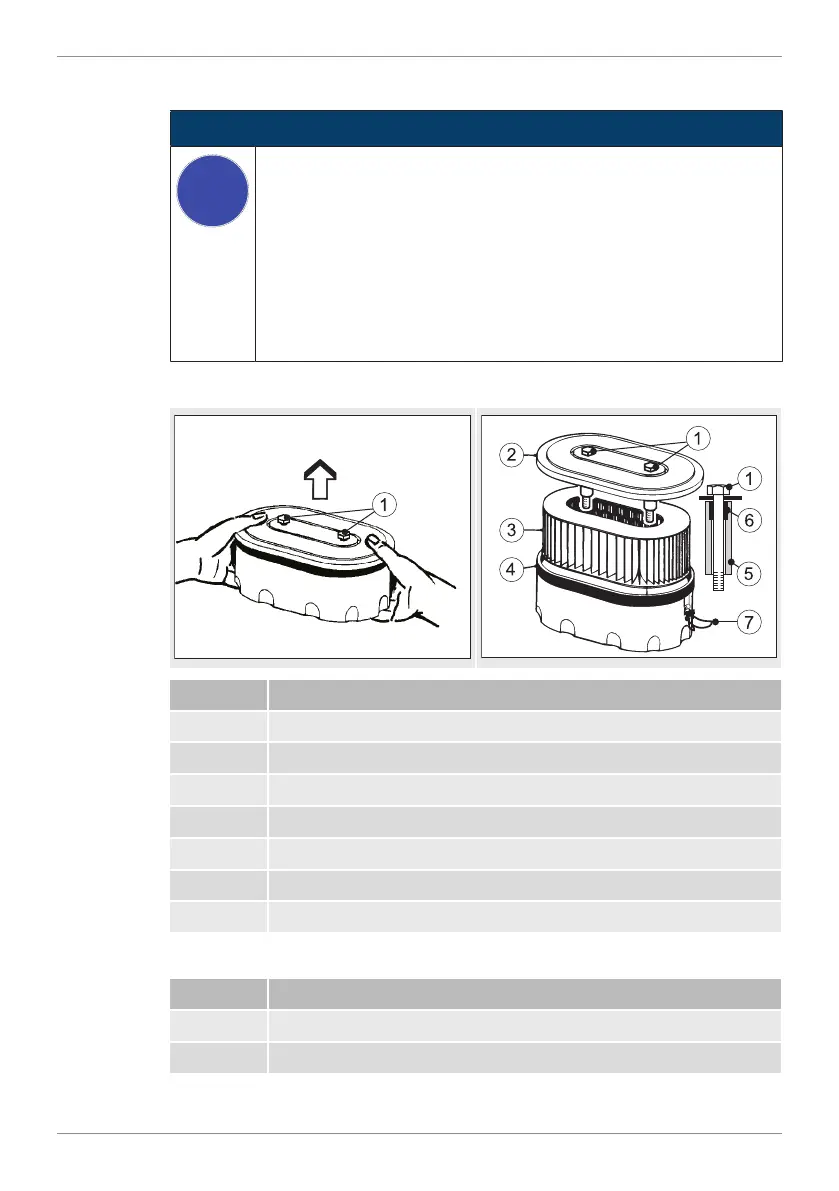

Overview — Removing the air filter cartridge (engines 3-4L43C)
Pos. Designation
1 Screw
2 Cover
3 Filter cartridge
4 Air filter housing
5 Spacer
6 Bushing
7 Clamp
Procedure — Removing the air filter cartridge (engines 3-4L43C)
Step Activity
1 Remove the capsule hood.
2 Remove adherent dirt in the area of the air filter housing (4).
