Maintenance 3-4L43C, 3-4M43, 3-4M43Z
60
HATZ
Manual

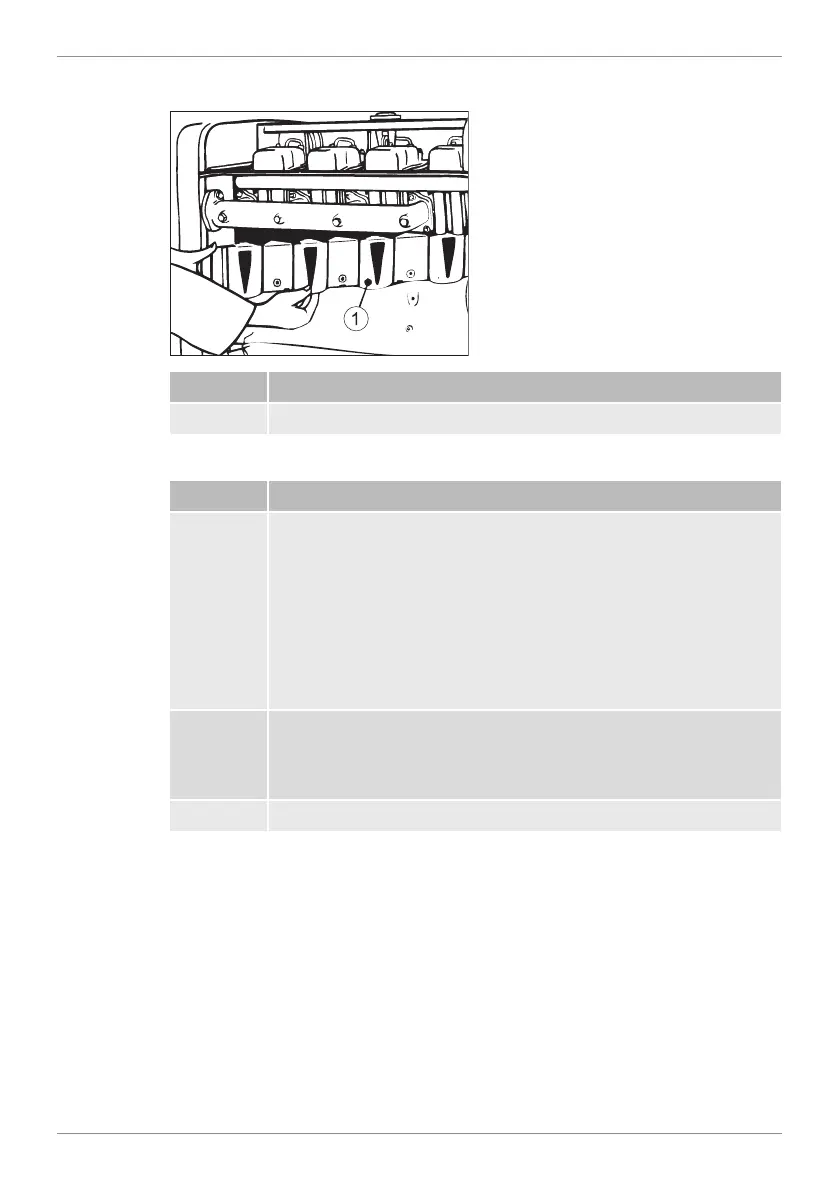

Overview — Preparatory activities
Pos. Designation
1 Baffle plate
Preparation — Cleaning
Step Activity
1 On encapsulated engines unscrew the following:
(see chapter 5 Engine design, page 26)
▪ Hood
▪ Side panel
▪ Cover plate on operating side
▪ Air outlet duct for cooling air
▪ Cover plate on air outlet side
1 Remove the following on engines without a capsule:
▪ Side trim panel
▪ Cooling air guide for lubrication oil cooler
2 Unscrew the baffle plate (1)
