Maintenance 3-4L43C, 3-4M43, 3-4M43Z
80
HATZ
Manual
NOTICE
i
▪ The diesel particulate filter must be conditioned/replaced
when the indicator lamp for "Fault in the area of the exhaust
emission after-treatment system" flashes 2 times for a long
time (see Explanation of symbols, chapter 7.4 Starting the
engine, page 35).
▪ The conditioning of the diesel particulate filter must be car-
ried out by a specialized company. In order to ensure shut-
down periods as short as possible, the "Hatz EasyClean"
exchange program is recommended.

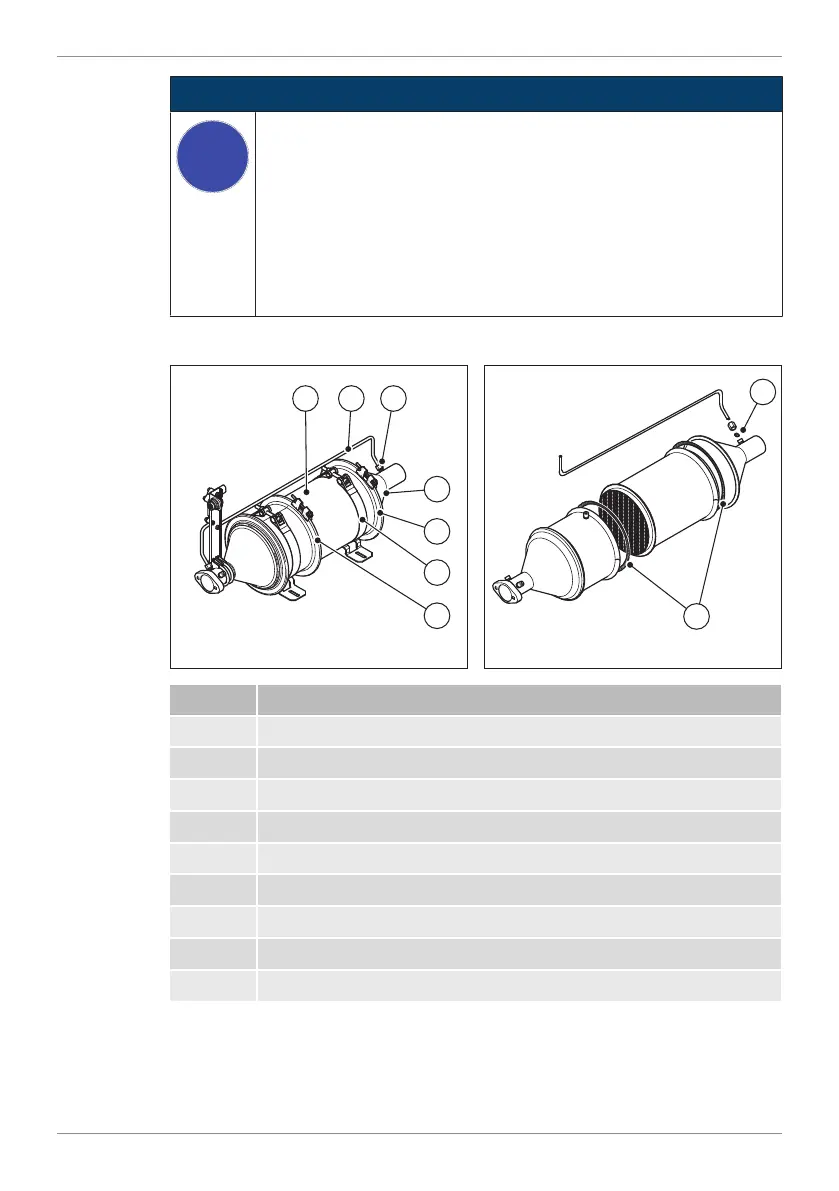

Overview
1
8
2 3
4
9
7
5
6
Pos. Designation
1 Diesel particulate filter
2 Differential pressure line
3 Cap nut
4 Discharge funnel
5 V-band clamp (discharge funnel)
6 Retaining foot clamp
7 V-band clamp (diesel particulate filter)
8 Cord packing
9 Sealing dome
