Mechanical installation
C9C A03729_03_YI0_01 HBM: public 19
A
H

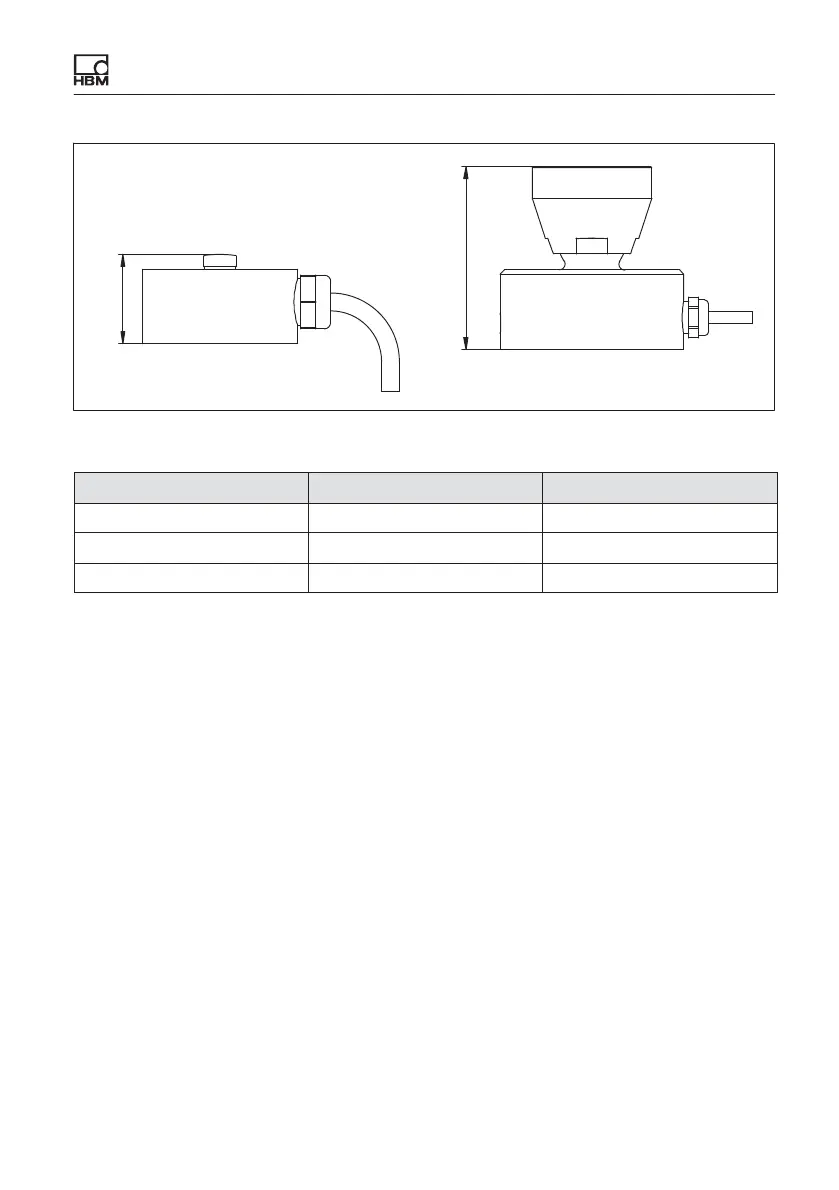

Fig. 6.3 Construction heights of the C9C with and without the EDO9 thrust piece
C9C A 0.1 H
50…200N 15 -
0.5…20kN 13 31.5
50kN 28 48.5
The following requirements must also be imposed on the structural component
that takes the base of the force transducer, or on which the C9C is placed:
S We recommend a flat, paint-free and grease-free surface. The cleaning
agent RMS1 from HBM can be used for cleaning (ordering number
1-RMS1).
S The hardness must be at least 40 HRC.
S It must be stiff enough not to bend.
S The ideal flatness does not exceed a tolerance of 0.01 mm.
