Mechanical installation
18 A03729_03_YI0_01 HBM: public C9C

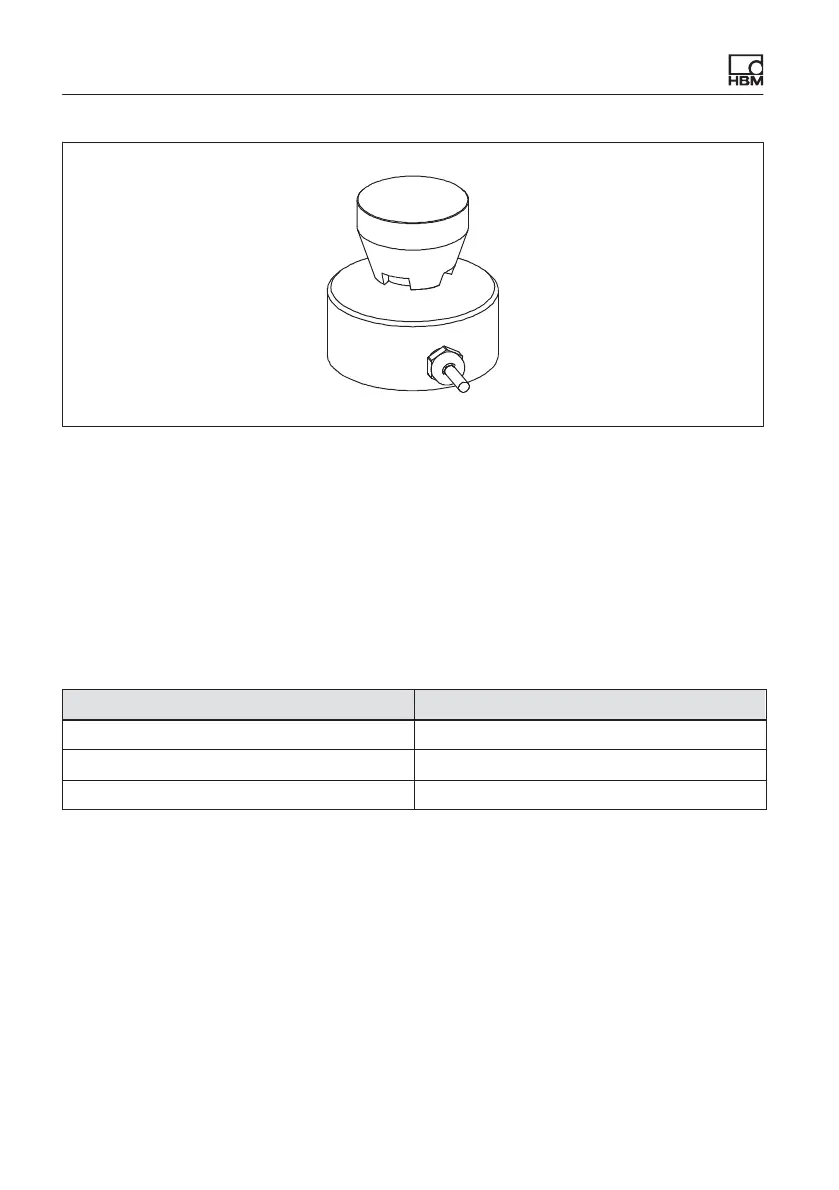

Fig. 6.2 Using the EDO9 thrust piece
The substructure must be capable of absorbing the force to be measured.
Remember that the rigidity of the overall system depends on the stiffness of
the force application part and the substructure. Please also note that the sub
structure must ensure that force is always applied to the transducer vertically,
i.e. there must be no inclination, even under full load.
There are threaded holes underneath the adapter, by means of which the C9C
can also be mounted upside down or vertically.
Nominal (rated) force Thread
50N…200N 3 x M3
0.5…20kN 3 x M2
50kN 4 x M4
Please note the construction heights of the C9C
