HBM C9C - EDO9 Thrust Piece Dimensions

Dimensions
28 A03729_03_YI0_01 HBM: public C9C
Dimensions in mm
Centering Ø A +0.1
Centering Ø A +0.1
Nominal (rated) force 0.5…20 kN Nominal (rated) force 50 kN
Ø B -0.1
D
18°
F
C
Ø 11.6
E
F
Ø B -0.1
D
C
E
18°

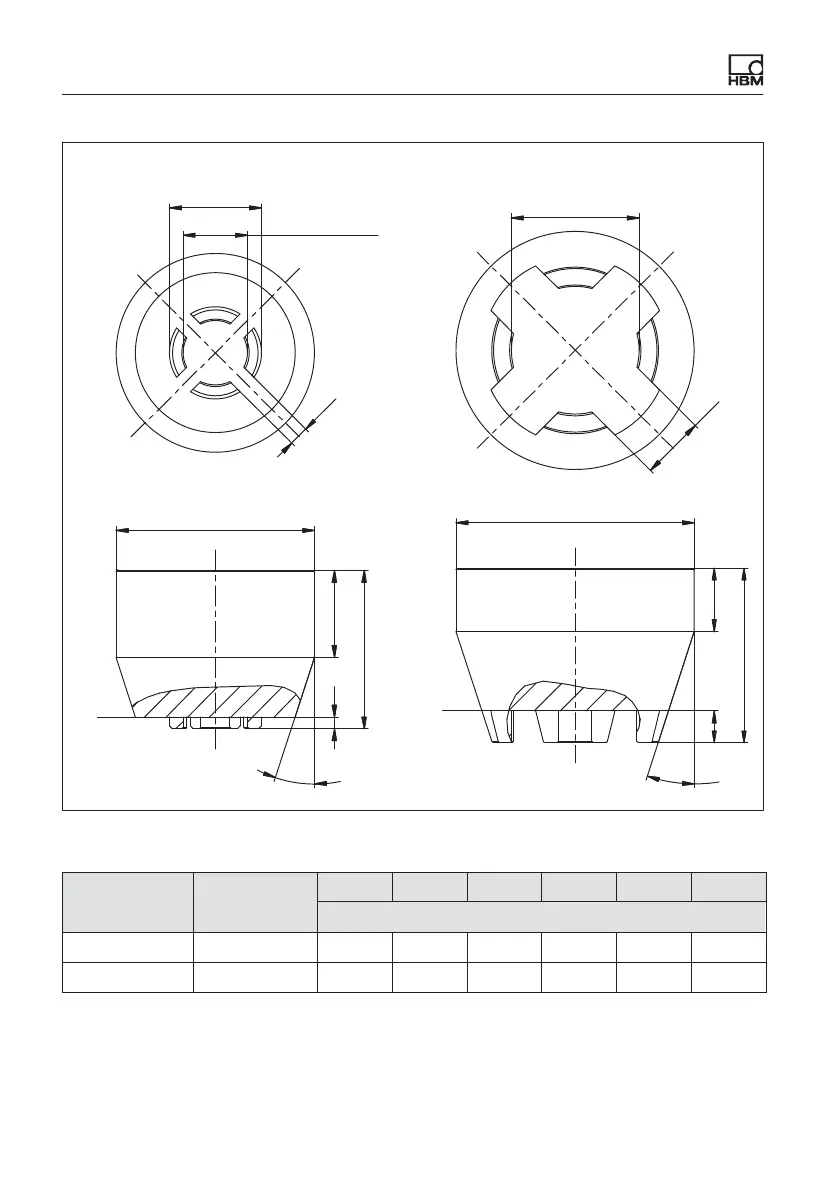

Fig. 8.3 Dimensions of EDO9
EDO9 Force range
ø A ø B C D E F
[mm]
1-EDO9/20kN 0.5 … 20 kN 8.1 25 20 11 1.5 2.5
1-EDO9/50kN From 50 kN 16.1 30 22 8 4 8
