Electrical connections
Inputs and outputs, remote controls
34 A03470_07_E00_00 HBM: public DMP41
WARNING
Electric voltage can be fatal or cause serious injury
► Disconnect all connected control inputs from mains circuits.
Important
All externally connected voltages must conform to SELV circuits, in accor
dance with the requirements of IEC/EN/DIN EN60950-1.

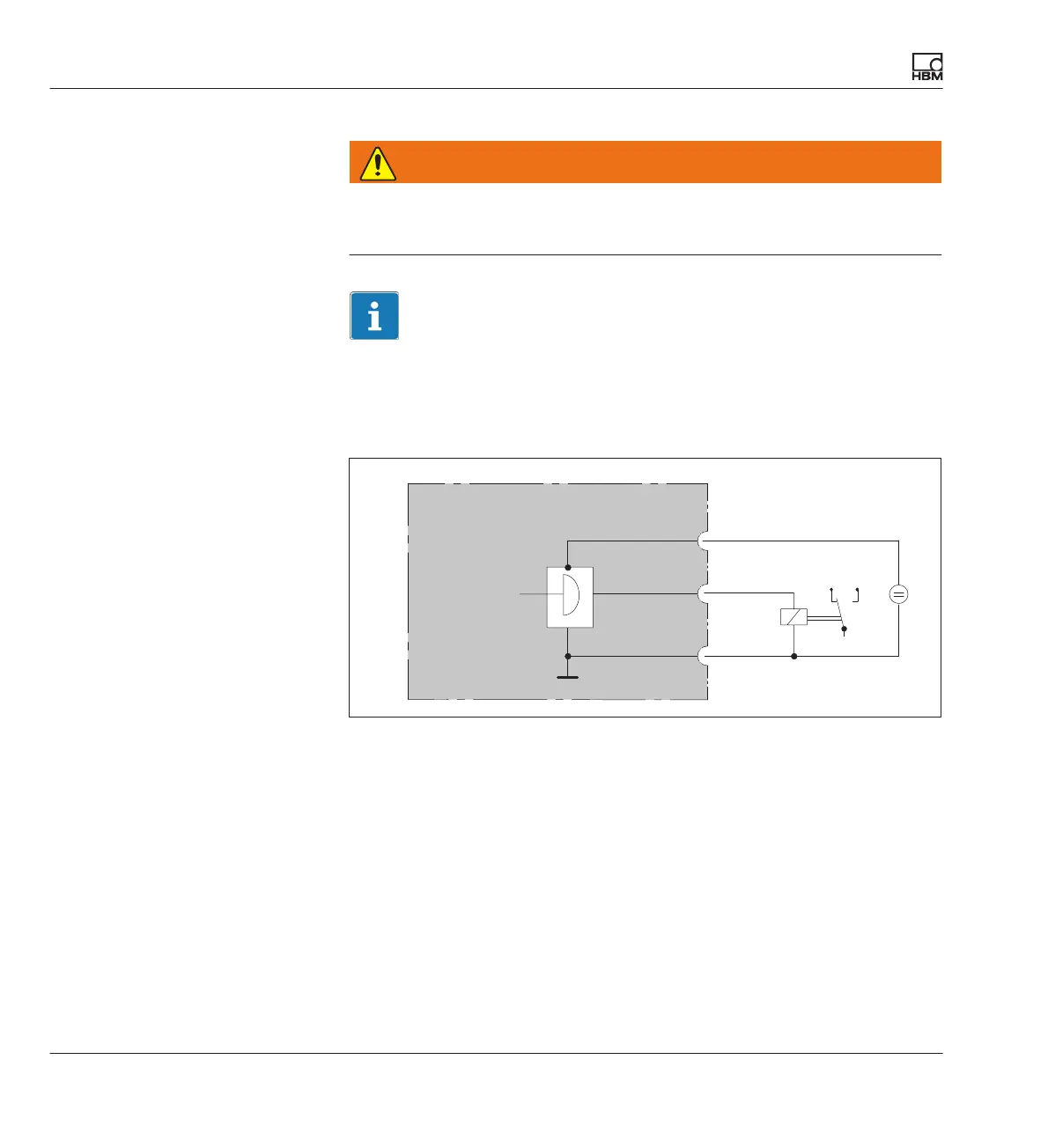

Circuit for control outputs: digital outputs 1 ... 4
0 V
+24 V
+
-
External
The voltage at the output is approx. 0.5...1 V lower than the externally con
nected supply voltage. The maximum current depends on the strength of
the external supply voltage, but must not exceed 0.5 A.
