HBM DMP41 - PC Connection

Electrical connections
PC connection
DMP41 A03470_07_E00_00 HBM: public 35

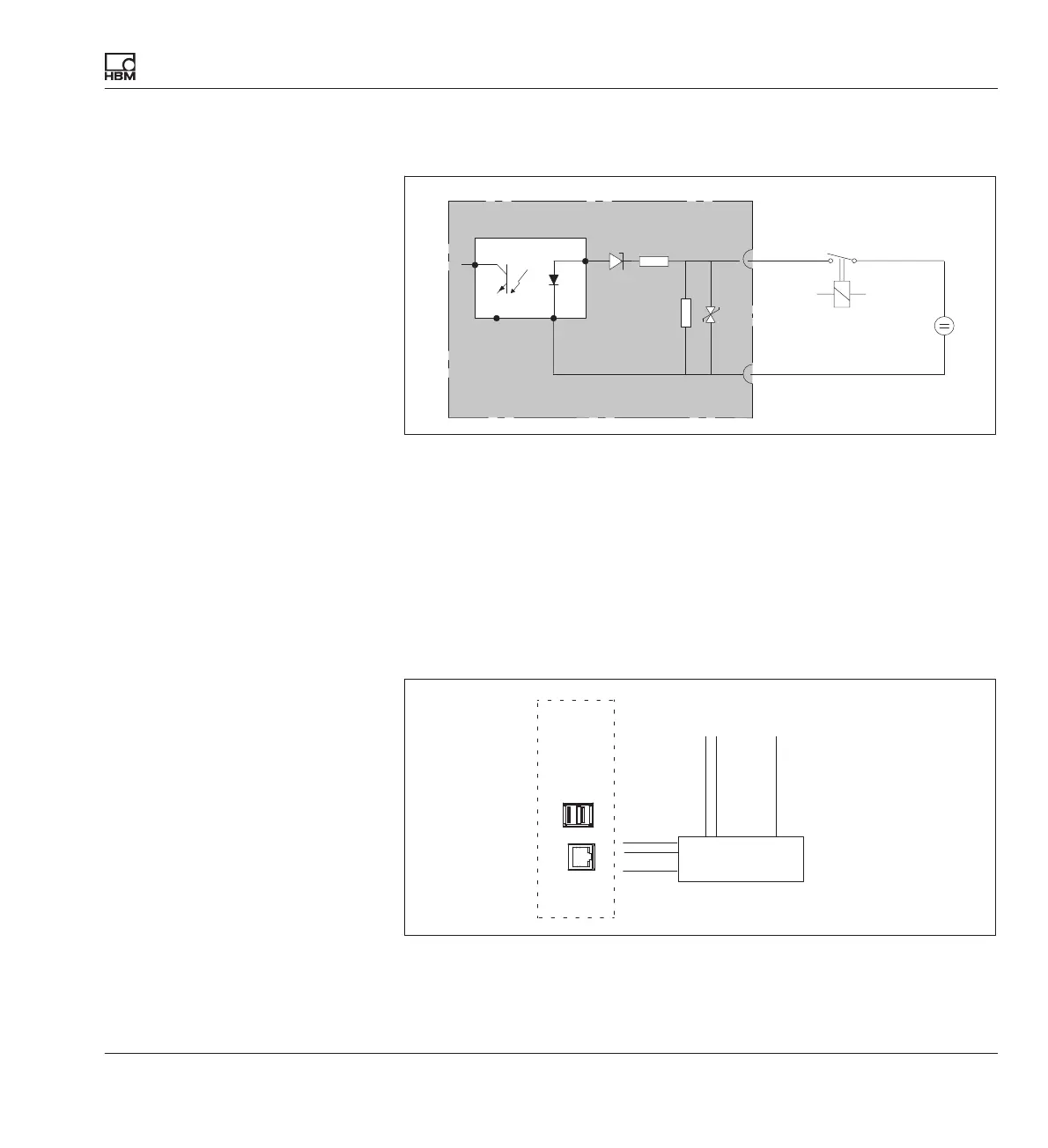

Circuit for control inputs: control inputs 1 ... 4
0 V
+24 V
+
-
External
5.6 V
2.5 k
5 k
36 V
approx. 12 mA
4.4 PC connection
Connection variants
S PC connection via Ethernet (recommended variant)
S PC connection via RS232 (with USB serial adapter)
PC connection via Ethernet /Ethernet switch
Ethernet switch
or Ethernet HUB
USB HOST
ETHERNET
1 . . . n
DMP41
1 . . . n PCs (Clients)
