Electrical connections
Inputs and outputs, remote controls
DMP41 A03470_07_E00_00 HBM: public 33
4.3 Inputs and outputs, remote controls
Four digital inputs and four digital outputs are available. The control inputs
and outputs are electrically isolated via optocouplers.

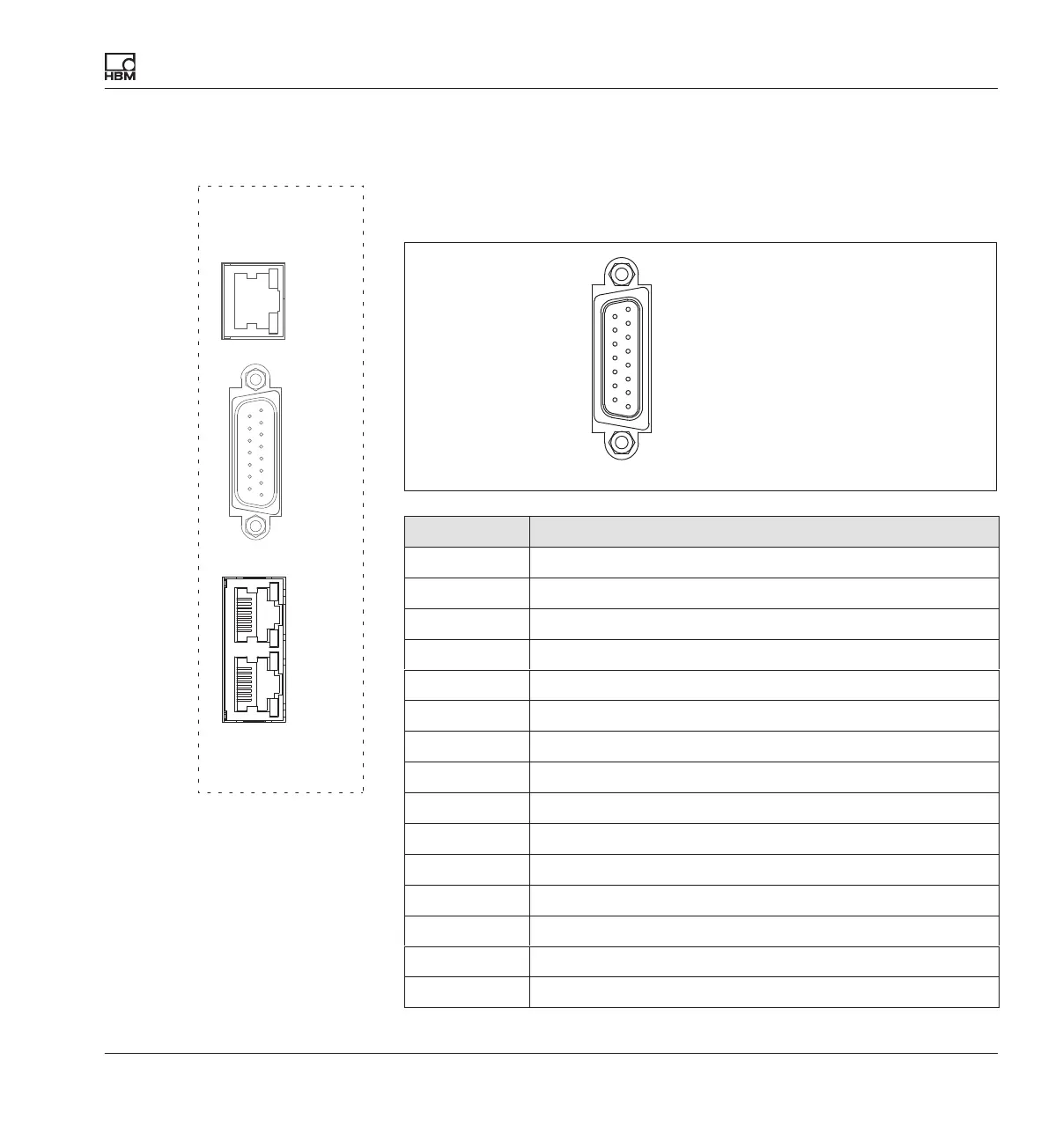

Connection diagram
1
15
9
8
Outputs/inputs
PIN Designation
1 Not in use
2 GND/IN
3 IN 3
4 IN 1
5 GND OUT
6 OUT 3
7 OUT 1
8 +24 V external
9 GND/IN
10 IN 4
11 IN 2
12 GND OUT
13 OUT 4
14 OUT 2
15 +24 V external
OUT
DIGITAL
IN/OUT
1-WIRE
TEMP
SYNC
IN
