HBM DMP41 - Back of Device

Introduction

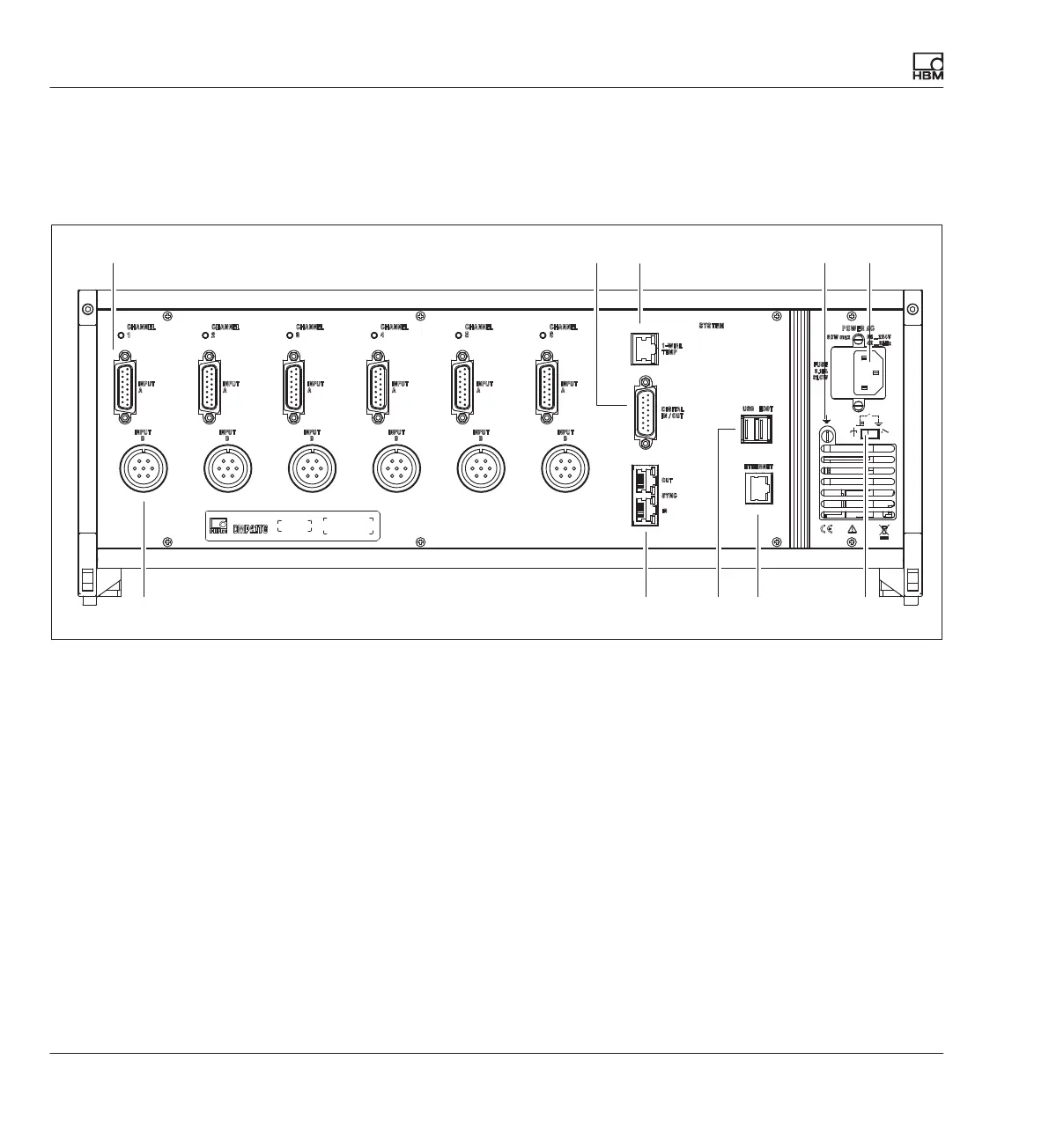

Back of device
22 A03470_07_E00_00 HBM: public DMP41
3.4.2 Back of device
DMP41-T6/E6
321 45
78910 6
Full bridge strain gage transducer; D-sub, 15-pin, DA-15P
Digital inputs/outputs
RJ45 1-Wire® temperature sensors
Housing ground
Mains connection
Grounding switch
Ethernet network
USB host (RS232 adapter, keyboard, USB flash drive, etc.)
Synchronization of several DMP41s
Full bridge strain gage transducer; MS cable connector, 7-pin, MS3106A
16S-P
