HBM K148 - Page 17

Operation
K148 A01681_03_X00_04 HBM: public 15
AP810i/AP815i
13
14
25
Subchannel
1...4
Subchannel
5...8
1
13
14
25
1
Connection cable, 25‐pin; 1-Kab263-3
1
13
14
25
CHANNEL 1... 4
CHANNEL 5... 8
1
13
1425
Connection cable, 25‐pin; 1-Kab263-3
HBM Amplifier

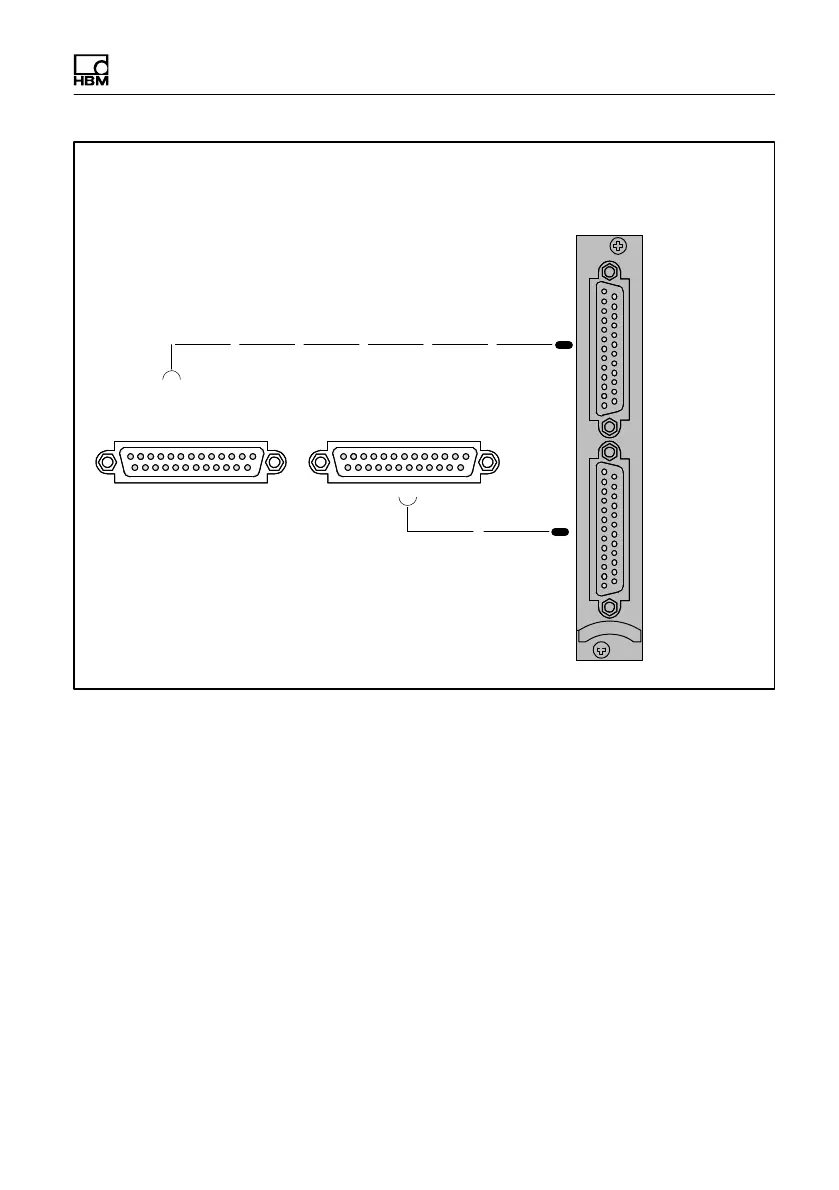

Fig. 5.4 Connection cables to HBM amplifiers
With single‐channel mode (SINGLE CHANNEL), a cable must not be con
nected to the 25-pin connection sockets (CHANNELS 1...4 and CHANNELS
5...8) and vice versa. It is advisable to always use the cables included among
the items supplied. Should the calibration unit have been calibrated, these
cables need to be used, since they were part of the calibration. The calibration
is therefore valid at the cable end.
