Mechanical
Quantum
X
I3031-14.0 HBM: public 53
Notice
The modules can only be fastened in backplanes in
housings with degree of protection IP20 without case
protection, case clips or lateral covers. If these are
present, remove as shown in section 6.
Mounting sequence:
1. Remove the cover of the connecting plug (rear of
module).
Cover

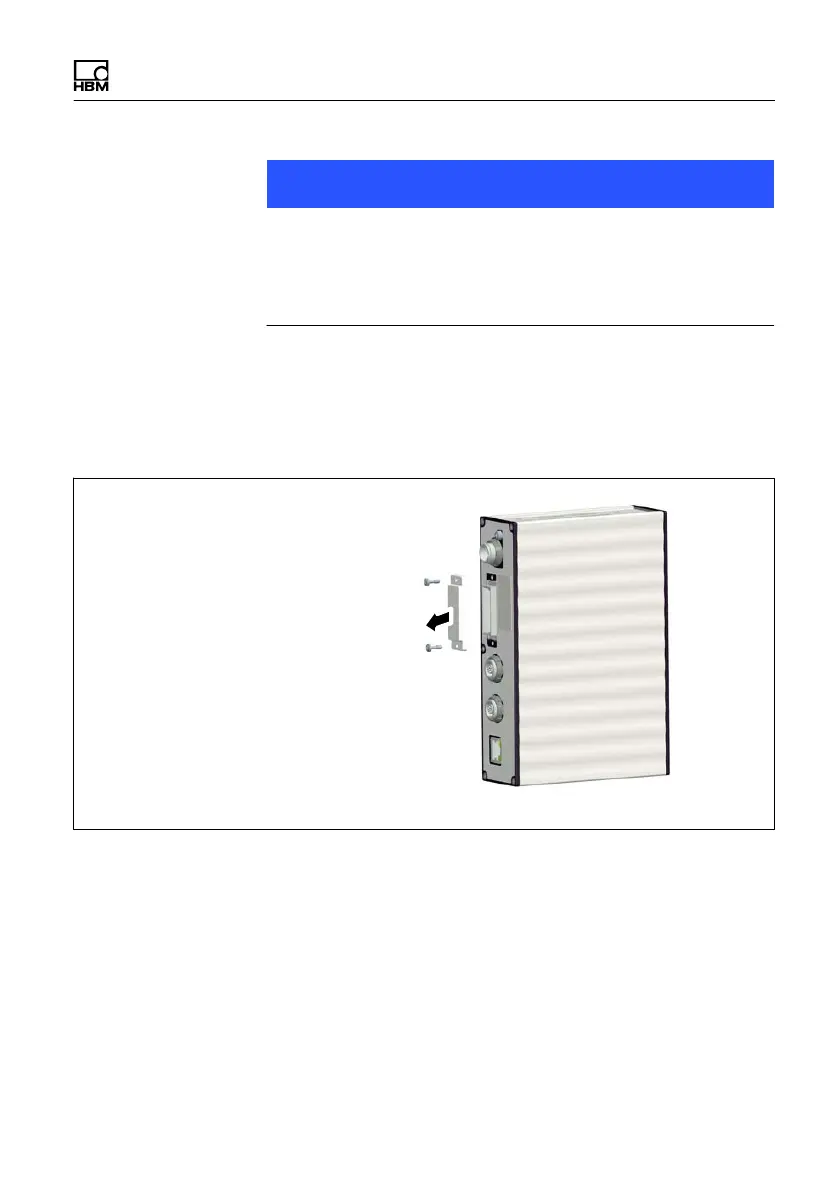

Fig. 6.15 Removing the cover
2. Unscrew the upper and lower screwed clamping
glands of the backplane up to the stop (the screws
are secured against falling out!).
3. Position the module vertically on the backplane and
push it in carefully on the lower guide rail back up to
the stop.
