HBM MX840B - Output of Signals with Standardized Voltage in Real Time (MX878 B or MX879 B)

Connecting individual QuantumX modules
80 I3031-14.0 HBM: public Quantum
X
MX471
KAB272
KAB272

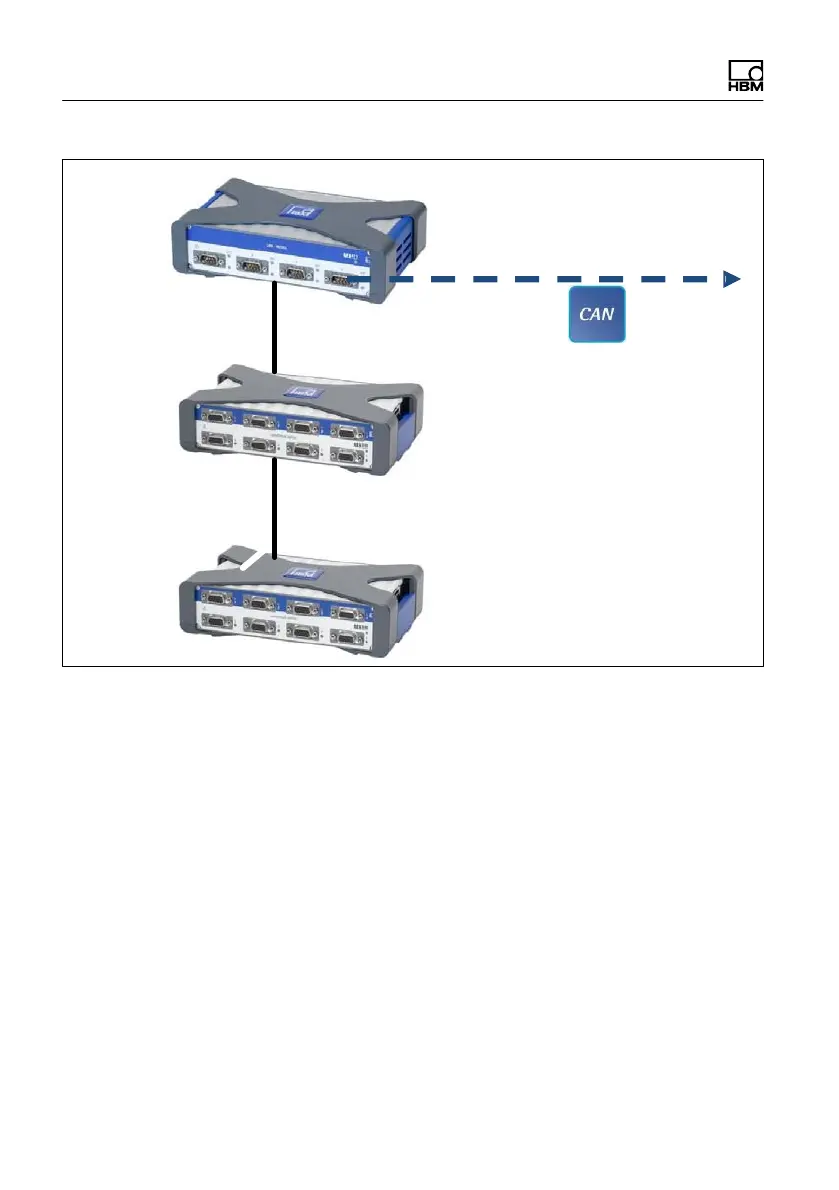

Fig. 7.10 Output to CAN bus (MX471, every connection)
7.2.12 Output of signals with standardized voltage
in real time (MX878B or MX879B)
It is very easy to integrate QuantumX via the globally
standardized interface of a normalized voltage (+/ 10 V),
particularly in a test bench environment. MX878B or
MX879B modules for distributed use serve this purpose.
These modules also allow onboard different input chan
nel calculations, such as matrix calculation for compens
ation of parasitic effects in multicomponent transducers,
ADDMUL, PID controls or limit value switches.
This mode is configured using the catman
®
or MX As
