4.2 Connecting modules via FireWire
General information
S Asynchronous data transmission with time stamp
S Isochronous data transmission, for example, for
realtime data computation on a module and output
S Supply voltage (max. 1.5 A)
10 V ... 30 V DC
1-NTX001 or 1-KAB271-3
1‐KAB270-3
Adapter
PC: PCI or PCIexpress card
Notebook: PC card (previously PCMCIA)
X104
X101

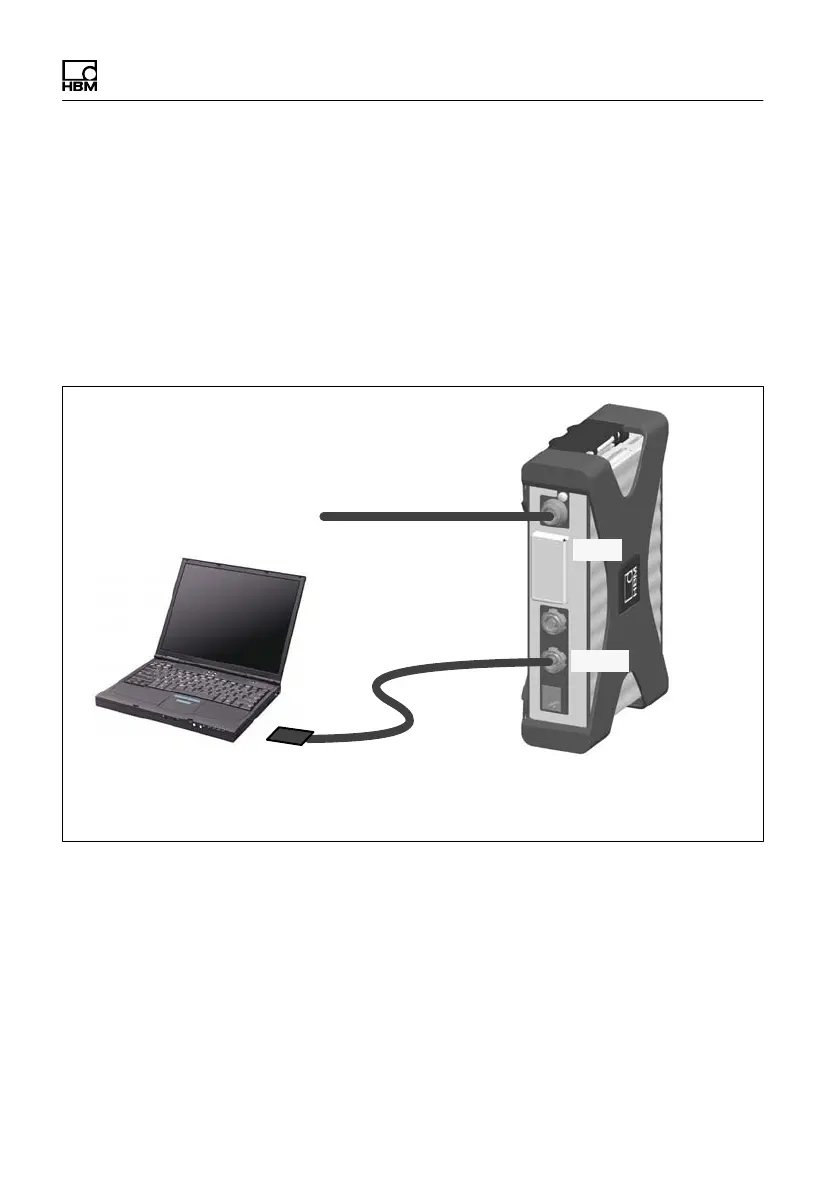

Fig. 4.3 Single module connection via FireWire
