HBM T12 - Stator Installation over the Protection against Contact (Option)

T12
32
A1979−10.0 enHBM
7.7.3 Stator installation over the protection against contact (option)
You can also axially flange the stator over the protection against contact
(material: aluminum). Holes are provided in the side parts of the protection
against contact for this purpose. For this mounting, we recommend M6
fillister-head screws with hexagon sockets in accordance with
DIN EN ISO 4762; black/oiled/m
tot
=0.125, of the appropriate length.

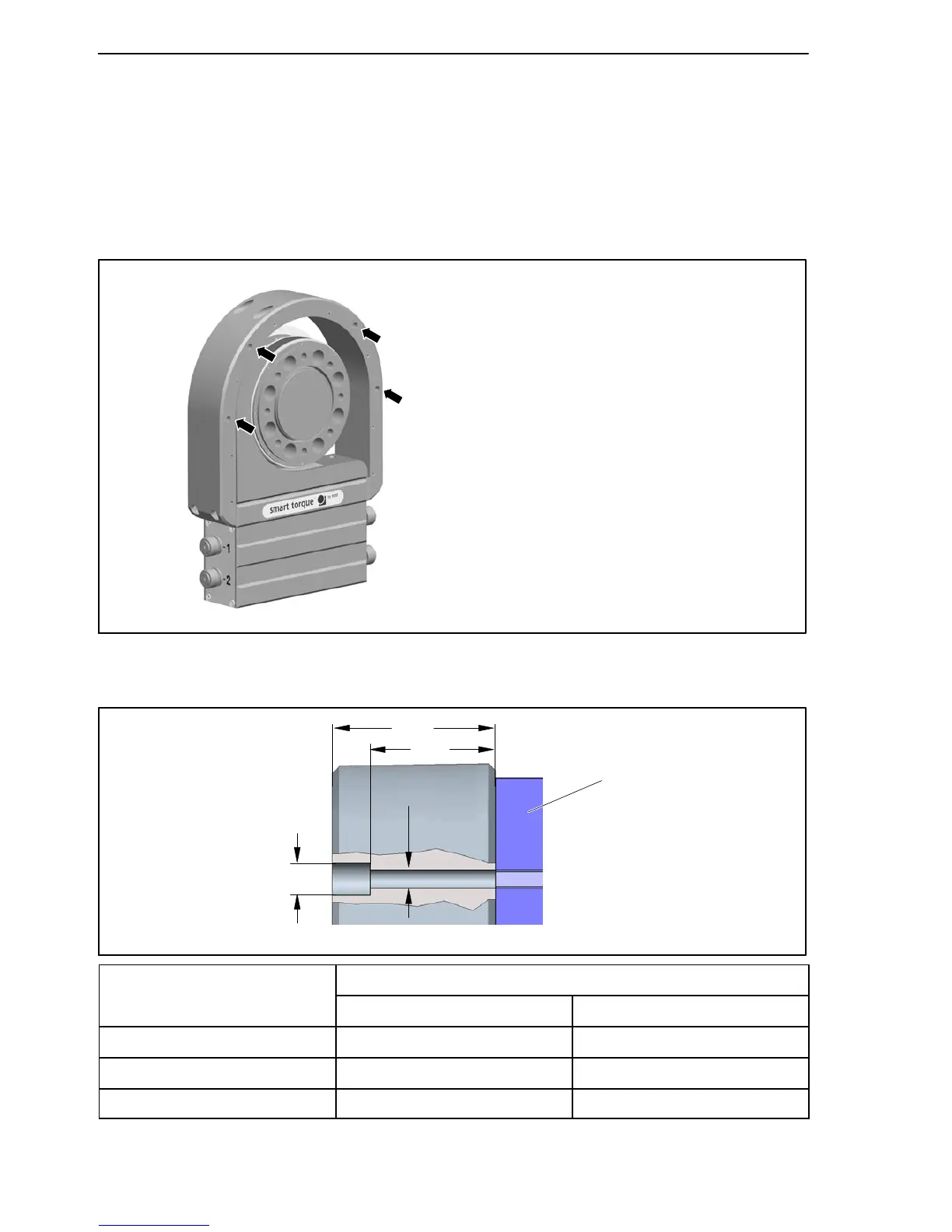

Fig. 6.17: Mounting holes in the protection against contact
Customer adaptation
11
6.6
b
2
b
8
Measuring range Dimensions in mm (1 mm = 0.03937 inches)
b
2
b
8
100 Nm to kNVm 56 43
5kNm 78 65
10 kNm 86 73
Table 6.2: Mounting hole dimensions
