Structure and mode of operation
16 A3452-10.0 T40B
Antenna
segments
Rotor
Connect
or plugs
Stator
housing
Type plate
Connect
or plugs

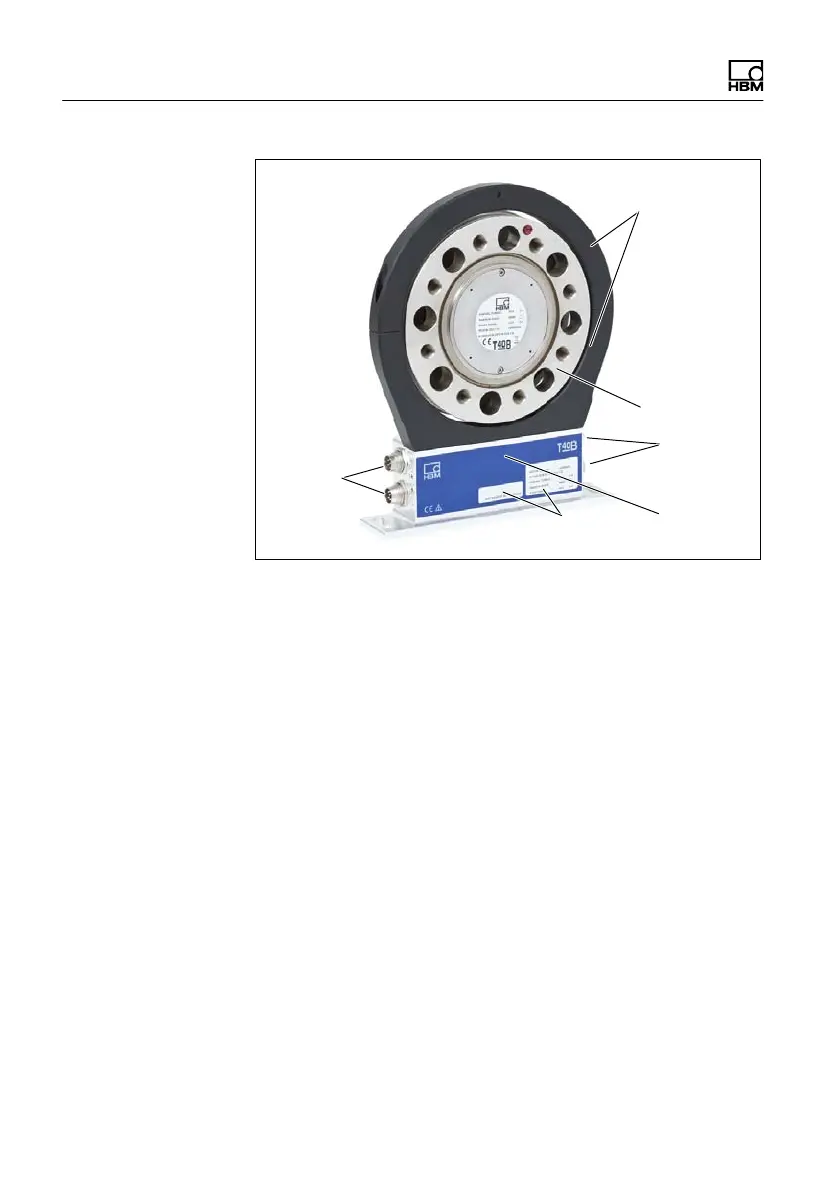

Fig. 4.1 Mechanical construction without a rotational speed
measuring system, Option 7, Code S
The rotational speed sensor is mounted on the stator in
Option 6 with a rotational speed measuring system. The
rotational speed is measured magnetically via an AMR
sensor and a magnetic ring. The magnetic ring for mea
suring the rotational speed is welded to the flange.
