Structure and mode of operation
T40B A3452-10.0 17
Antenna segments
Rotor
Connector
plugs
Stator housing
Type plate
Connector plugs
Sensor head for measuring
rotational speed
Magnetic ring for rotational
speed measurement

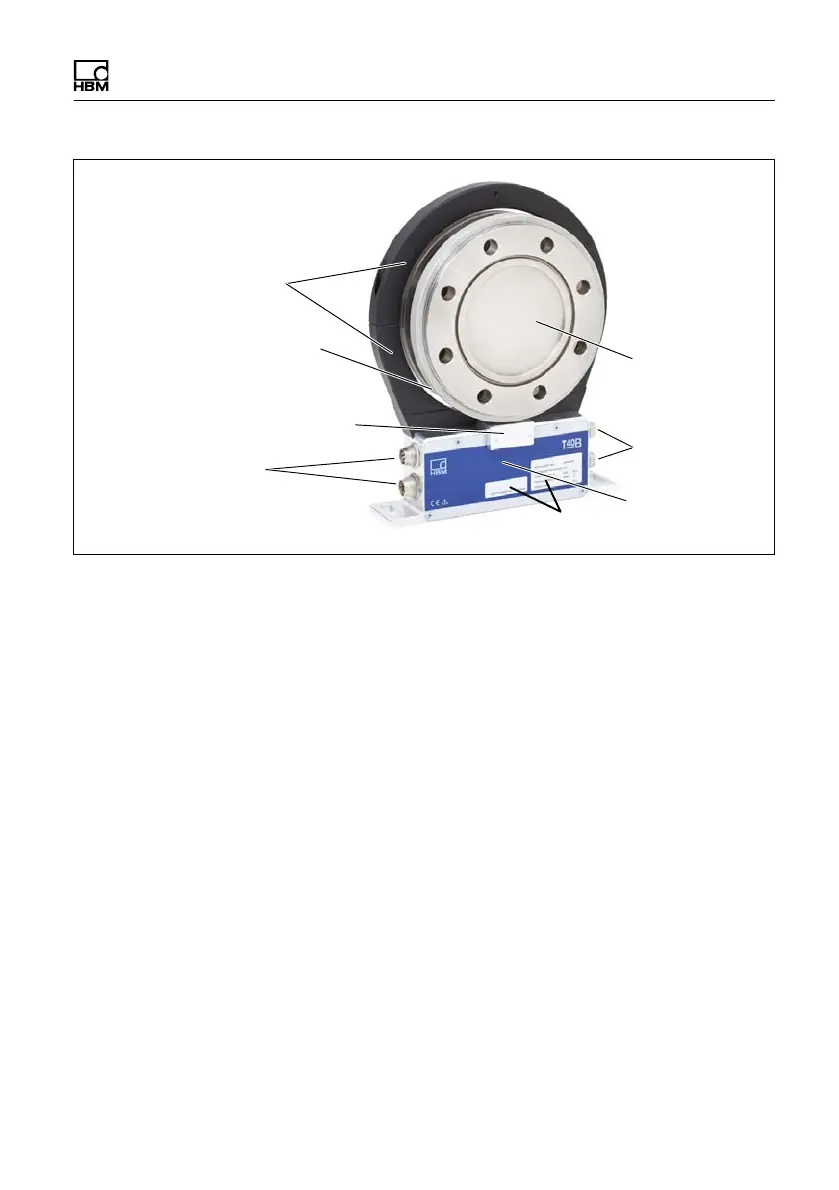

Fig. 4.2 Mechanical construction with a rotational speed
measuring system, Option 7, Code S
In the version with a rotational speed measuring system,
the transducer can also be fitted with a sensor head for a
reference signal (zero index) for measuring the angle of
rotation. The magnet to be used for this is located on the
inner surface of the flange. The sensor head for sampling
the reference signal is located in the bracket above the
rotational speed sensor.
