Electrical connection
T40B A3452-10.0 45
Pin 1
Pin 6
Pin 3
Pin 7
Pin 2
Pin 4

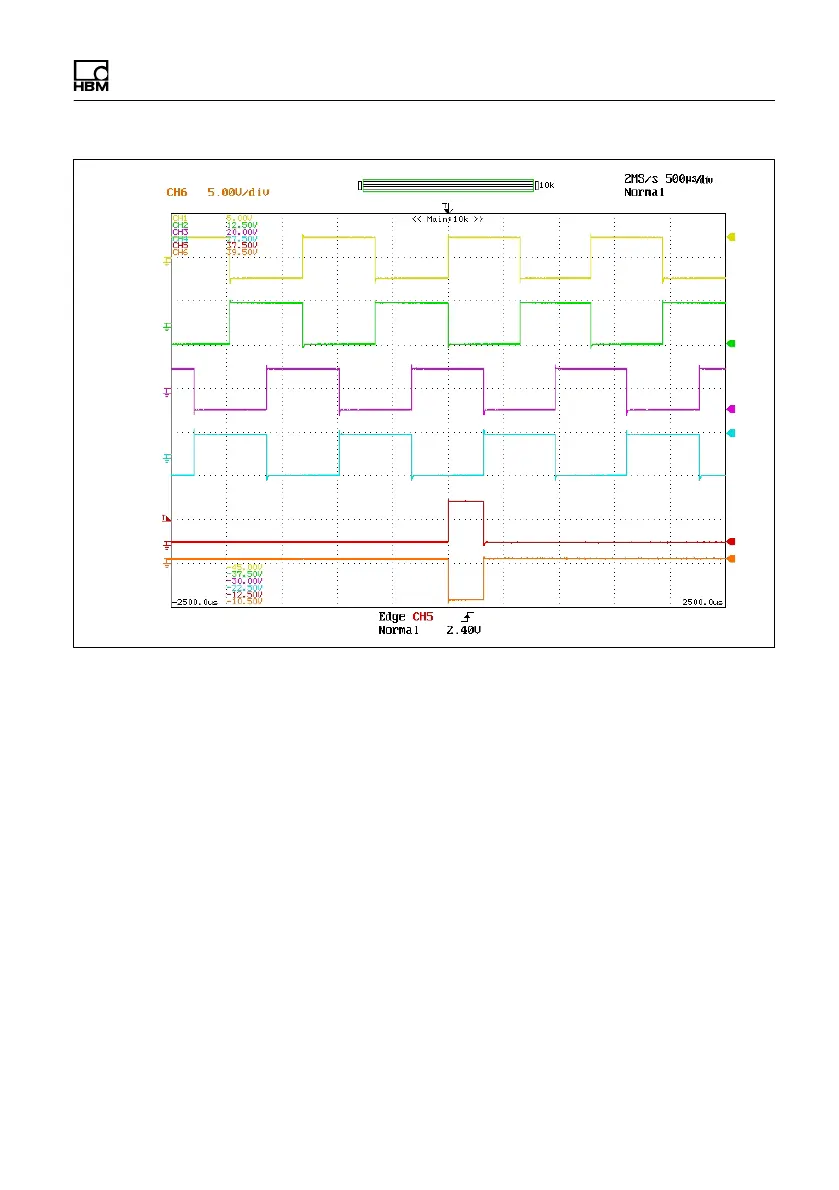

Fig. 6.1 Rotational speed signals at plug 2 (rotational speed
in the direction of the arrow)
