Electrical connection
46 A3452-10.0 T40B
Pin 1
Pin 6
Pin 3
Pin 7
Pin 2
Pin 4

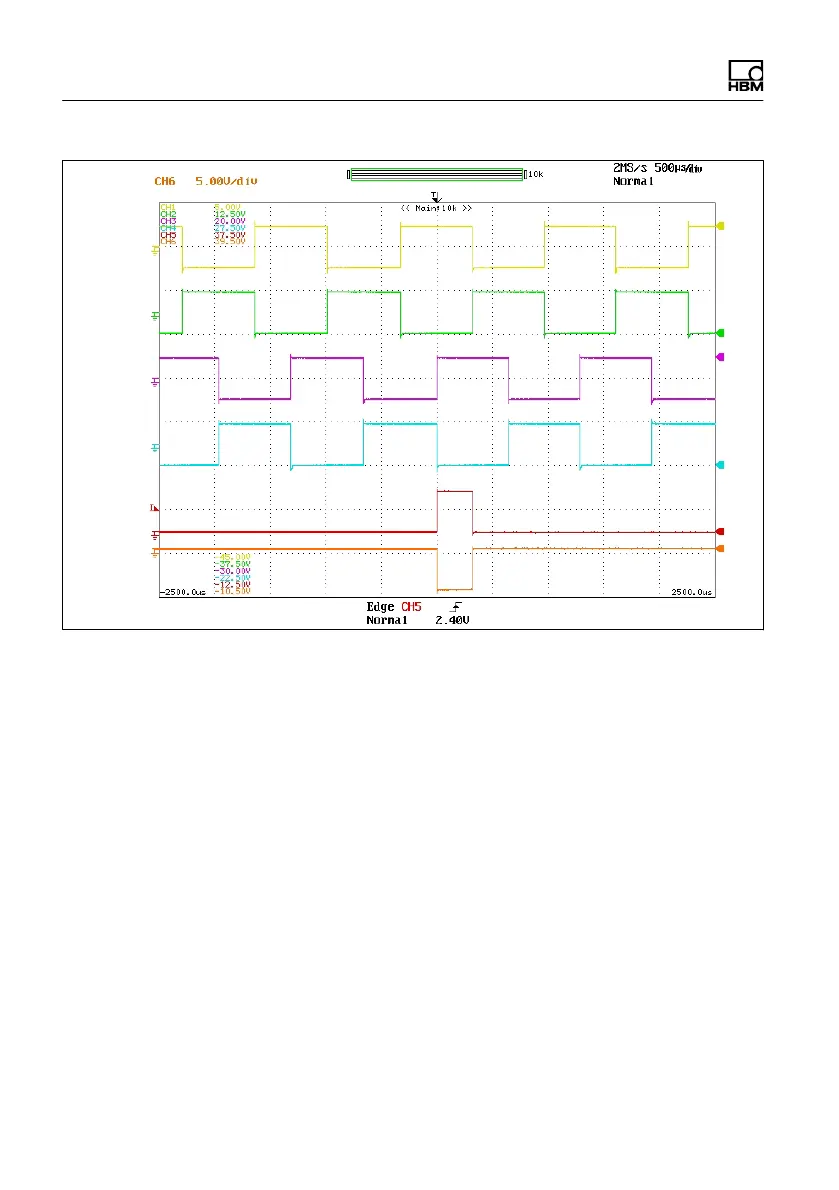

Fig. 6.2 Rotational speed signals at plug 2 (rotational speed
against the direction of the arrow)
