Electrical connection
12 A2335-2.0 HBM: public VK20A
The cable configuration is adjusted to the system device
to be connected. In the junction box housing, there is an

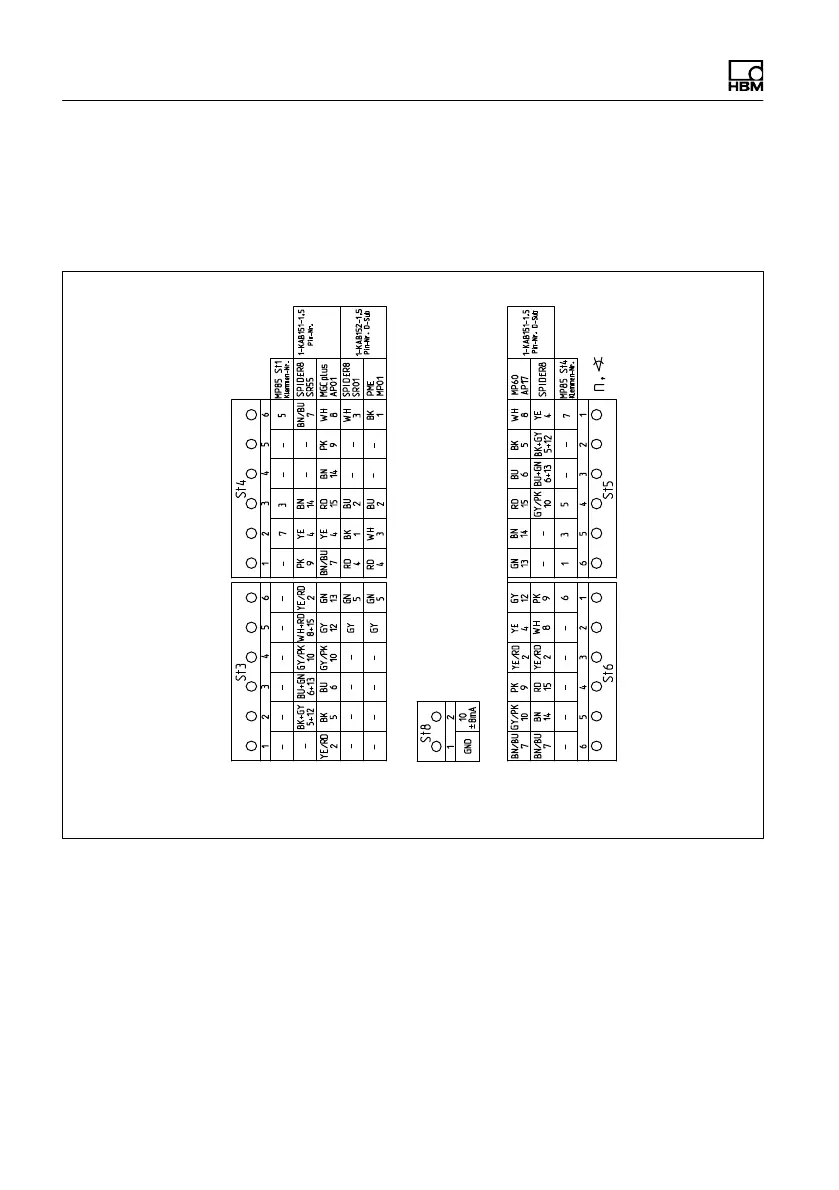

instruction leaflet with the connection diagram for the var
ious HBM system devices (see both parts of Fig. 5.2).
Md [V]
Md [I]
Continuation of the figure on next page
