Electrical connection
VK20A A2335-2.0 HBM: public 11
5 Electrical connection
5.1 Connection cable for evaluation
electronics
HBM provides the following connector cables for con
necting the T20WN, T21WN and T22 through the VK20
junction box to the evaluation electronics:
S 1-Kab 151-1.5 (15‐pin D‐sub connector (male) - free
ends)
S 1-Kab 152-1.5 (SUBCON5 - free ends)
YE/RD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
YE
BK
BU
BN/BU
WH
PK
GY/PK
GY
GN
BN
RD
1-Kab151-1.5 1-Kab152-1.5
1
2
3
4
5
bared
BK
BU
WH
RD
GN
Shield

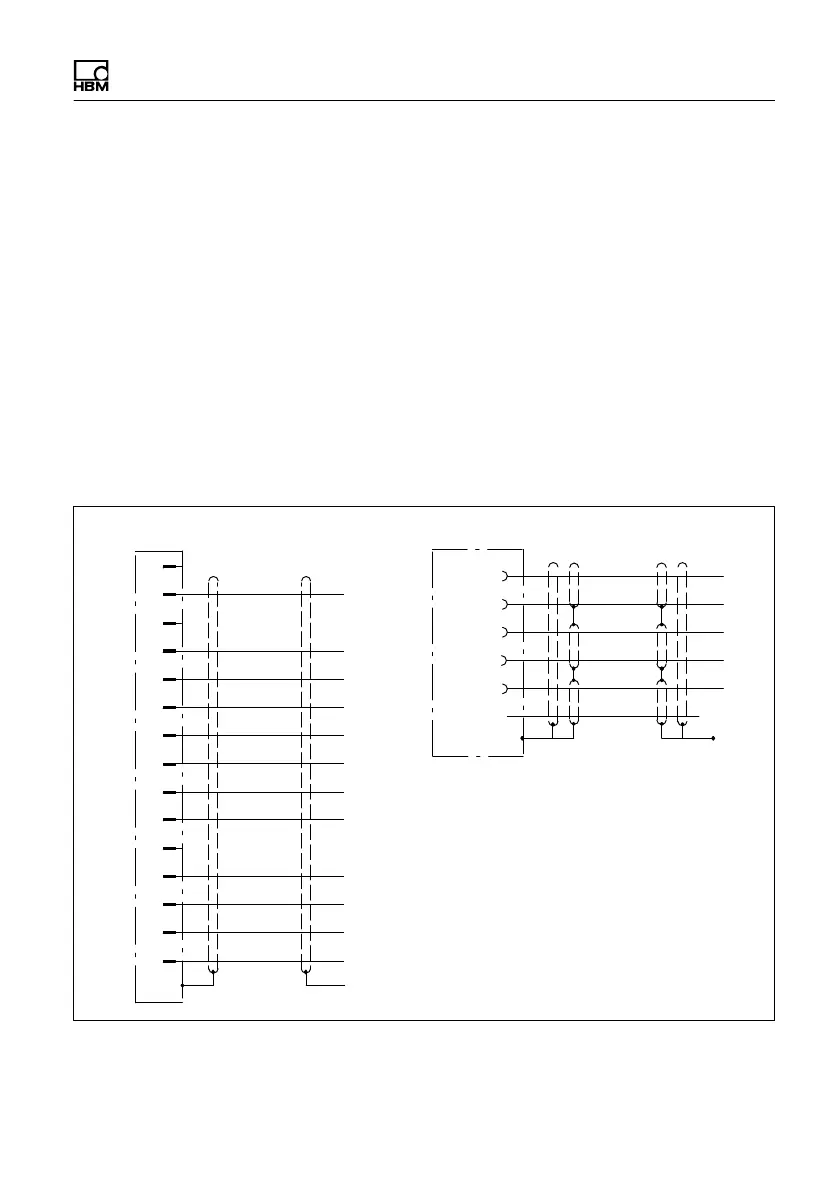

Fig. 5.1 Cable for connecting to the evaluation electronics
