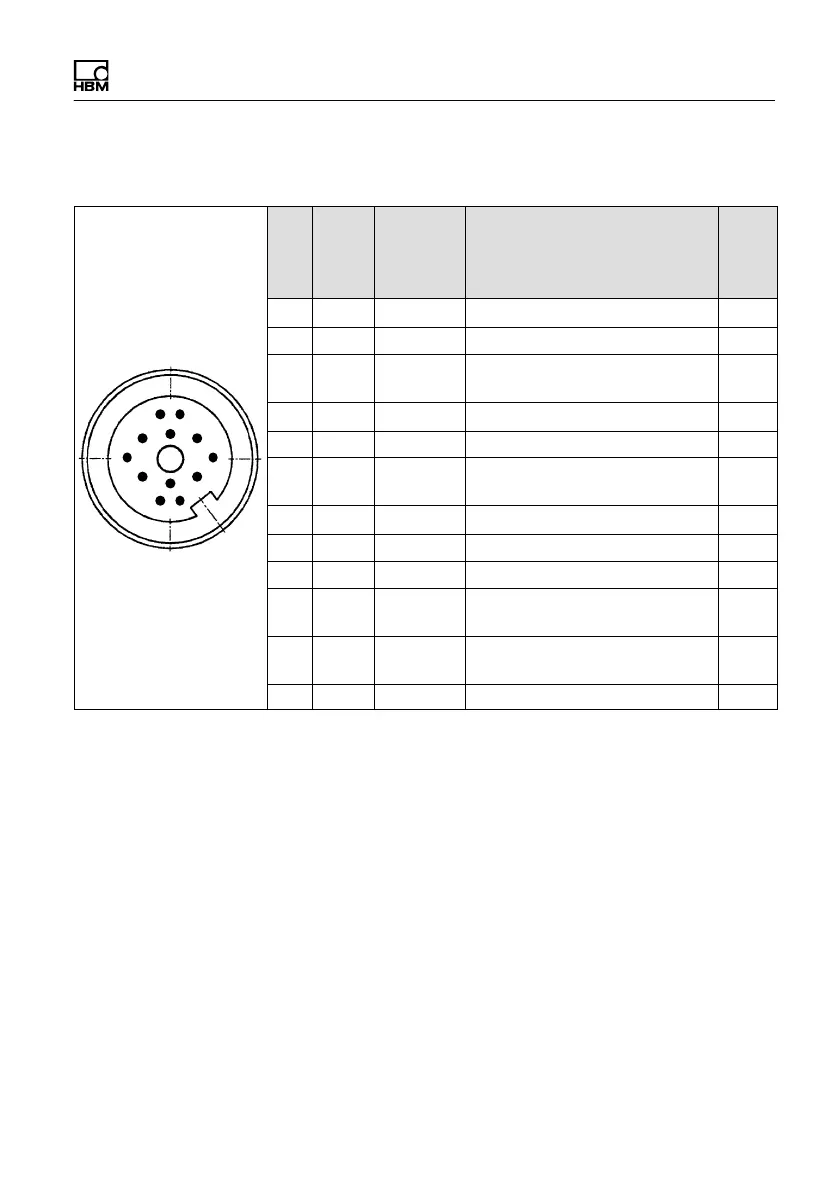

5.1.3 Electrical connection of T22 (St1 and St2)
A
B
C
D
E
F
G
J
H
L
M
K
Pin Wire
color
Strip
terminal/
terminal
VK20A
Function I/O
1)
A BK St1/1
None
-
B RD St2/1 None -
C BN St1/3 Measurement signal:
torque"5V
I
D WH St1/4
Ground (torque)
I
E YE St1/5 Ground (supply) O
F VT St1/6 Supply voltage
+11.5 V … 30 V
O
G GN St1/2
None
-
H PK St2/2 None -
J GY St2/3 None -
K GY/
PK
St2/4 None -
L BU/
RD
St2/5 Measurement signal: torque
10"8 mA
I
M BU St2/6 Cable shielding -
Tab. 5.2 Connection T22
1)
O=Output; I=Input
