Electrical connection
VK20A A2335-2.0 HBM: public 15
Wall of the housing
Clamping ring
Anti‐buckling socket,
internal Ø 8.5 mm
Cable shield
looped round
clamping ring Clamping ring
Outer sheath of cable
Earth sleeve
Stranded filler wire
of the internal
cable shields
Cable shield
Detail X

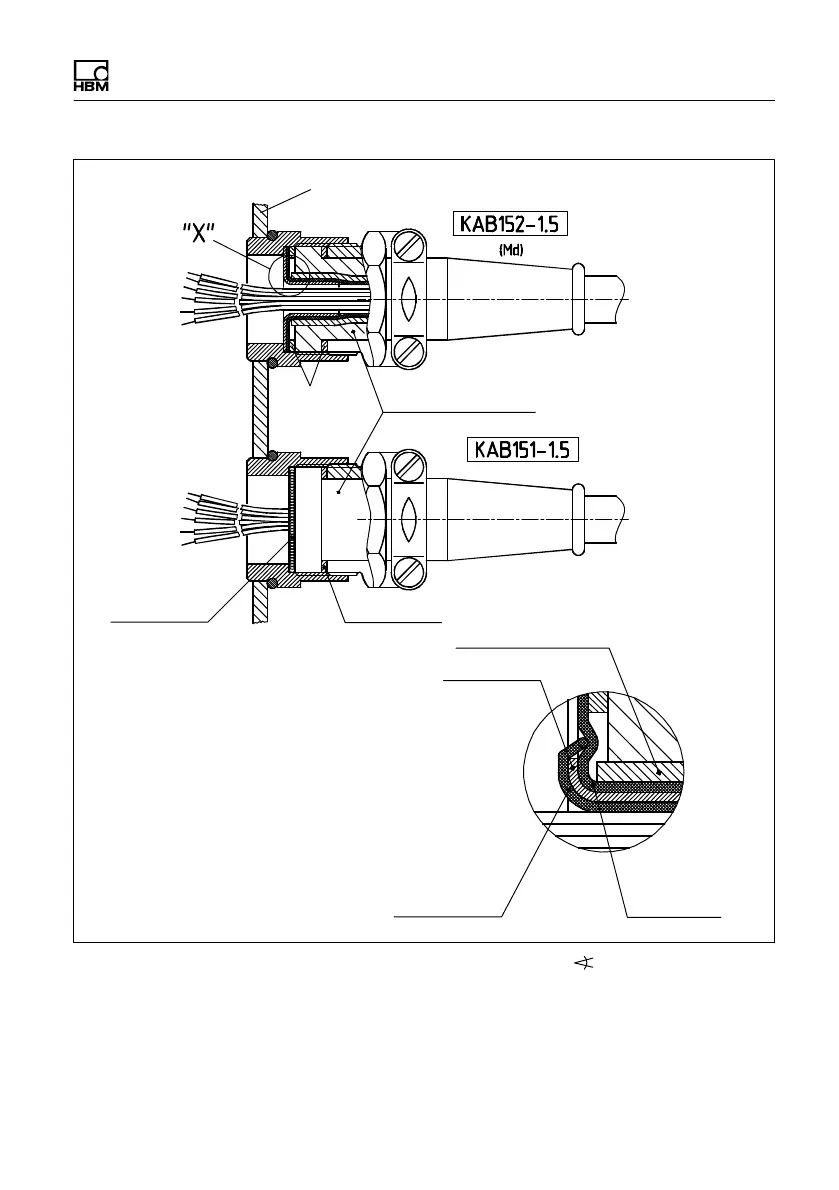

Fig. 5.4 Cable bushing ”Md” and ”n/ ” at the junction box
