4 Function
In this chapter you learn more about the design of the welding gun and how to use the
various setting options.

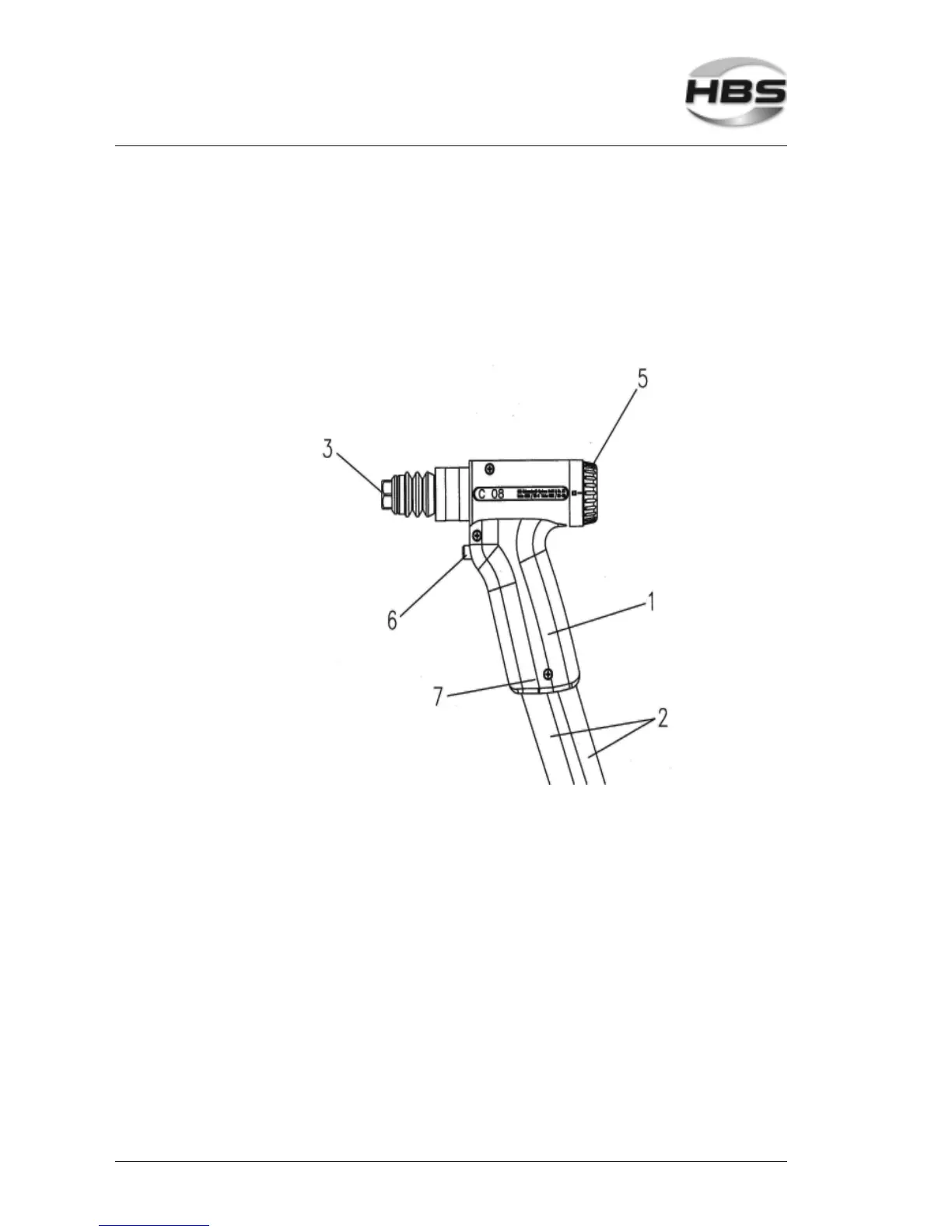

4.1 Components of the Welding Gun
The body of the welding gun consists of a sturdy two-part plastic housing (1).
The control cable and the welding cable (2) are connected through the welding gun
handle to the welding gun.
Positioned at the front of the welding gun are the welding piston and the retaining nut
(3) used to fix the manual chuck.
At the rear, there is the mechanism for spring force adjustment (5).
At the front of the welding gun handle, the welding gun trigger (6) is installed. It is used
to trigger the welding process.
The serial number (7) can be found on the welding gun handle.
