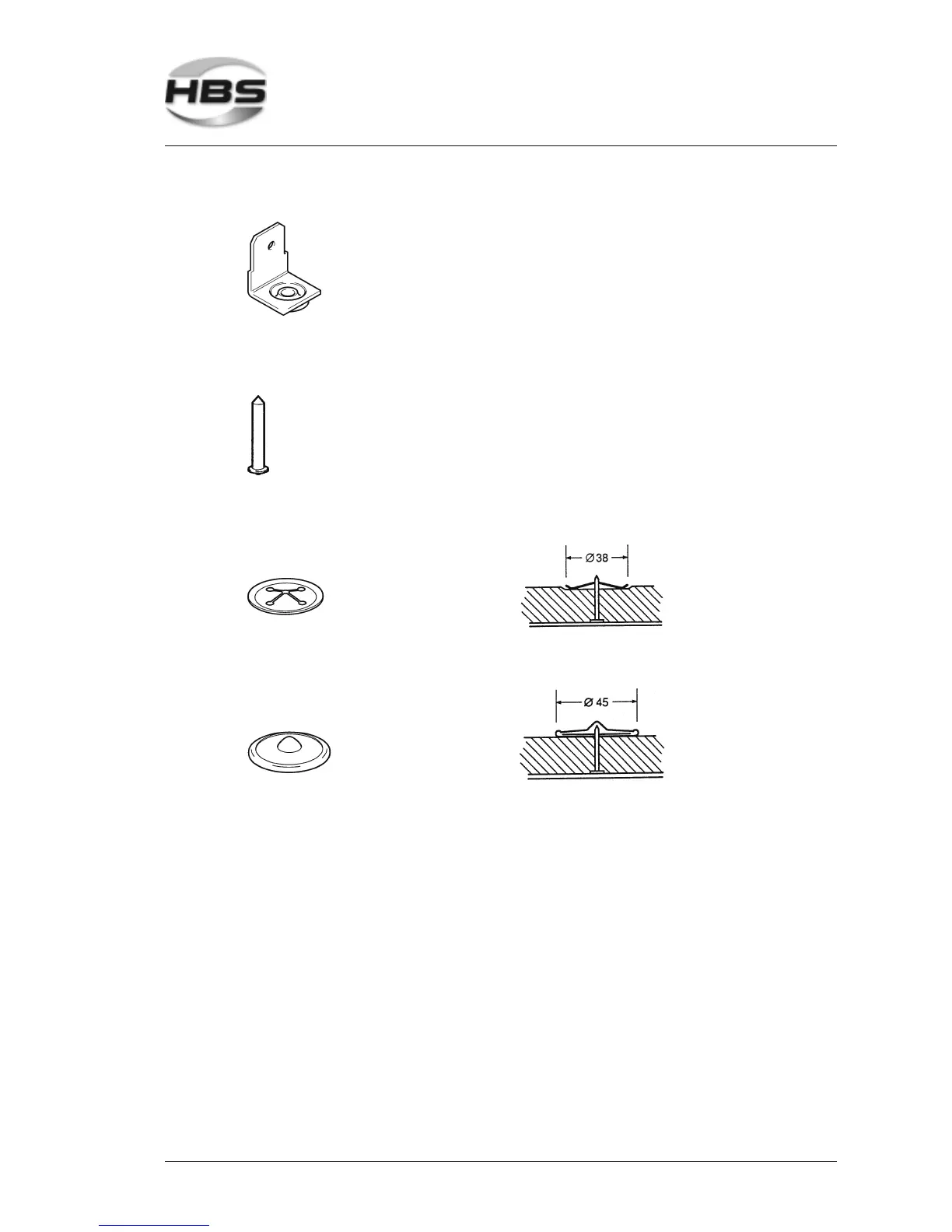

Flat connection Dimensions Stud
6,3 82-50-050
Materials: S235 / St37.3k (4,8) / 1.4301, 1.4303 / CuZn37 / AlMg3
ISO-nails ** Diameter Length Stud
2 20-100 mm 82-50-020
3 30-250 mm 82-50-030
Materials: S235 / St37.3k (4,8) / 1.4301, 1.4303
ISO-clips for nails
Ø 2
Ø 3
Materials: St2k70 galvanized / 1.4301, 1.4303
ISO-clips for nails
plastic coated
Ø 3
Material: St2k70 galvanized
We look forward to consult you with view to special welding elements and other special
materials.
HBS Bolzenschweiss-Systeme GmbH & Co. KG
Felix-Wankel-Strasse 18
85221 Dachau / Germany
Phone +49 (0) 8131 511-0
Fax +49 (0) 8131 511-100
E-mail post@hbs-info.com
** above 100 mm length, only weldable with tripod order no. 92-40-043.
