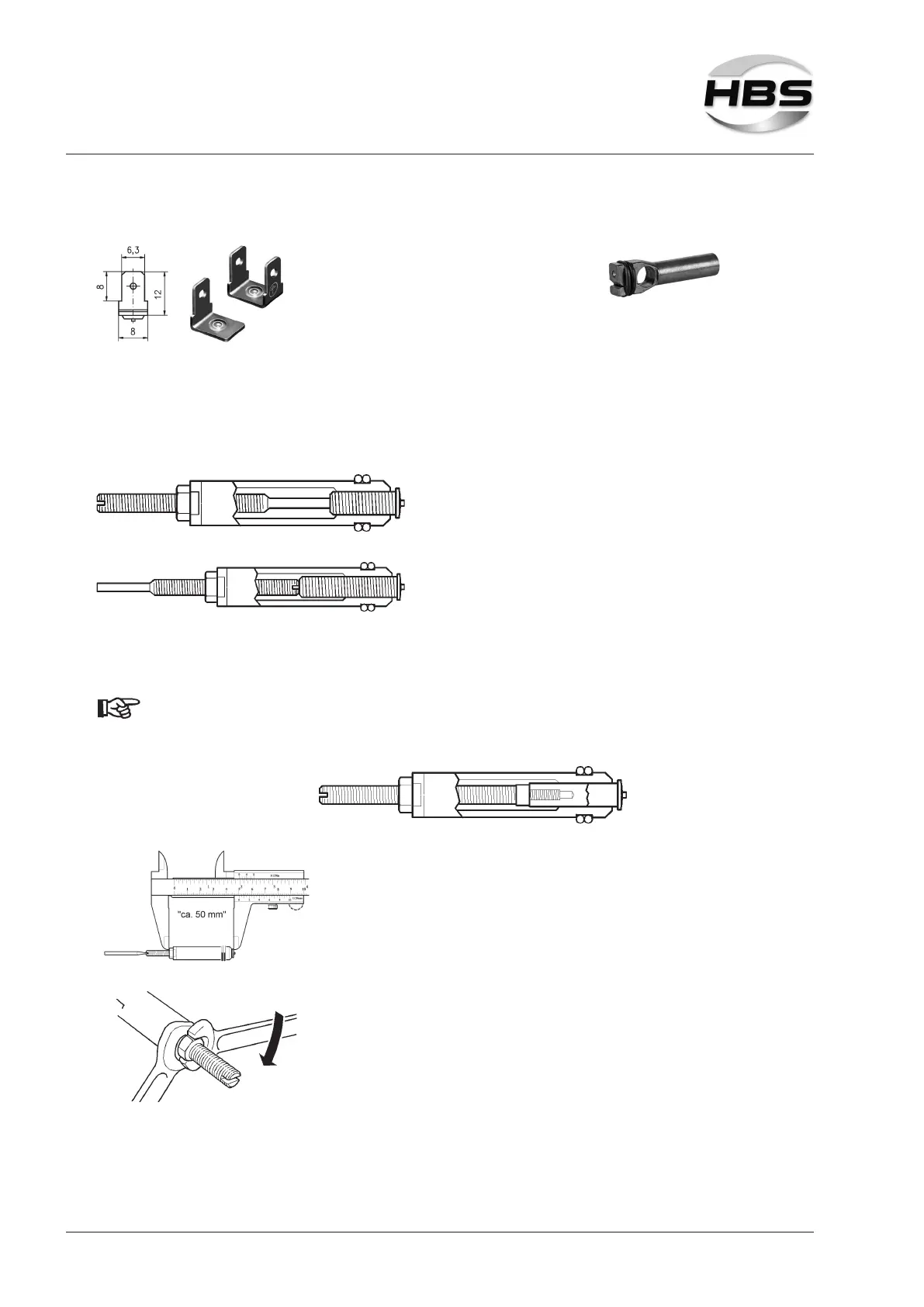

10 Preparing the Welding Gun
Ground clips (single and double style)
Dimension in mm Chuck
Ø
6,3 82-50-050
Stick the welding element into the chuck. An adjustable stop pin is located in the
chuck.
Disconnect the lock nut.
Rotate the stop pin in the chuck so that
– for welding elements up to 20 mm long, the
non-threaded part is in the chuck.
– for welding elements over 20 mm long, the
non-threaded part sticks out of the chuck.
For welding elements with internal threads or chucks for internal threaded
studs, a special stop pin accessory for internal threads can be delivered.
Adjust the stop pin so that the overall measurement
value from the top of the lock nut to the bottom of the
welding element is between 50 and 51 mm.
Screw the lock nuts back on.
