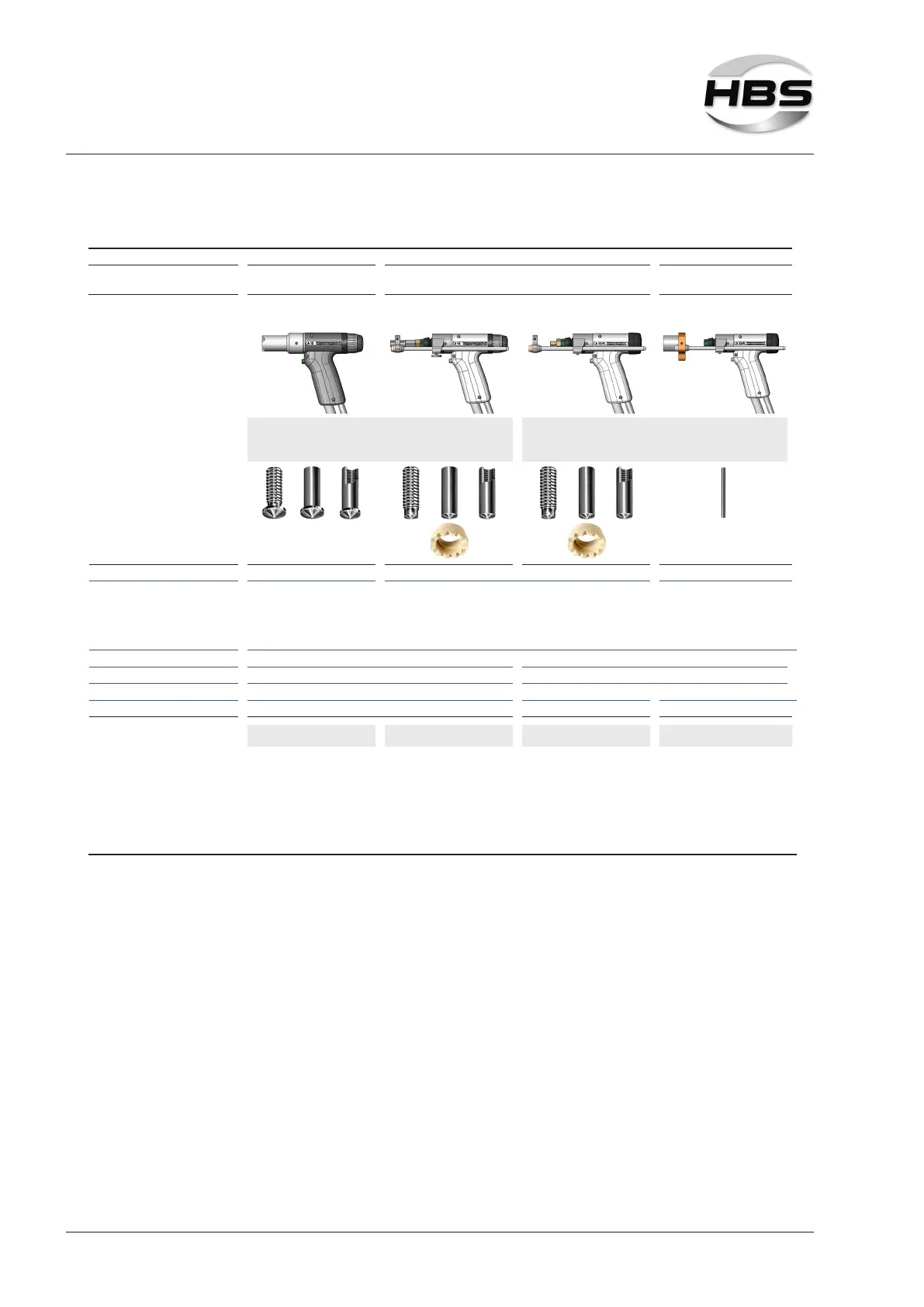

The following stud welding guns are recommended for Visar 650:
Welding range*) M3 - M6, Ø 2 - 6 mm M6 - M10 (Typ RD) / Ø 6 - 8 mm Ø 3 - 6 mm
Stud length 10 - 40 mm 10 - 150 mm
40 - 280 mm
1)
> 40 - 460 mm
2)
A 12 A 12 A 12-FL A 12-FL
• Small gun with easy set-up for SC welding
• Length compensation (stable welding results)
• Simple set-up of the gun without
length compensation
Welding elements
Welding process
SC
ARC (Ceramic)
ARC (Ceramic)
ARC (Insulation)
Stud type SC threaded studs with
ange (PS),
pins with ange (US),
pins with internal thread
and ange (IS)
ARC threaded studs (PD/RD/DD), pins (UD),
pins with internal thread (ID)
ARC ISO pins,
ARC Fiberx pins
Length compensation 3 mm automatic --
Lift Adjustment range 3 mm, lockable Fixed 6 mm
Spring force Adjustable, arresting Fixed
Welding cable 4.8 m, 35 mm², SK 50 5 m, 35 mm², SK 50 10 m, 35 mm², SK 50
Order No. Order No. Order No. Order No.
93-20-276
(welding gun A 12 incl.
centering tube PPR-2)
93-20-275
(welding gun A 12 incl.
ceramic leg assembly
PSC-1)
93-20-260
(welding gun excluding
leg assembly)
93-40-022
(ceramic leg assembly
PSC-1)
not included in delivery
93-20-26010
(welding gun excluding
leg assembly)
93-40-066
1)
93-40-065
2)
(ISO leg assembly PSI-3)
not included in delivery
*) recommended welding range Visar 650 / welding gun with this equipment
