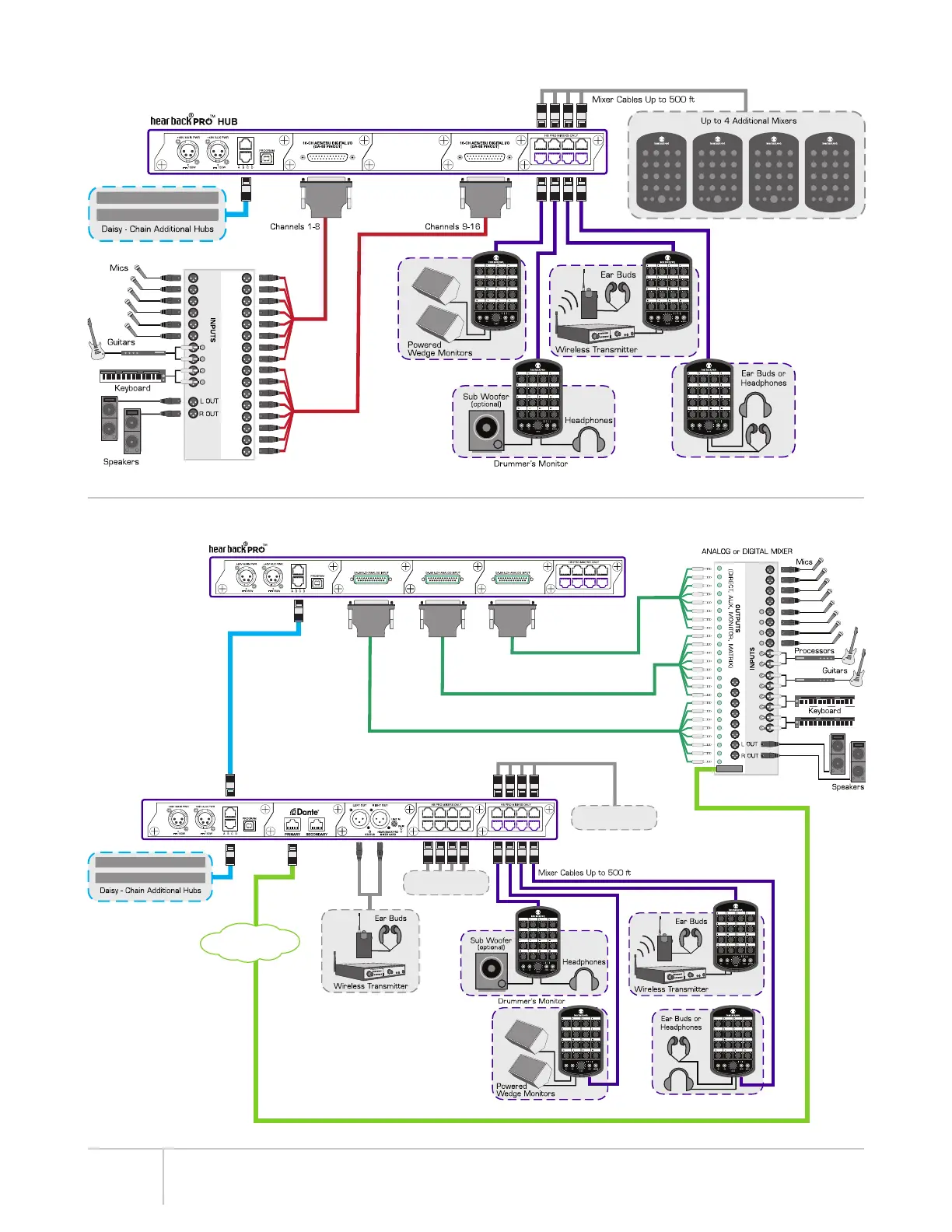

HOOK-UP DIAGRAM | DIGITAL (FW V5)
HOOK-UP DIAGRAM | SIMULTANEOUS DIGITAL AND ANALOG (FW V5)
10
Channels 17-24
Up to 8
Additional Mixers
HUB 1 Analog Card Analog Card Analog Card Network Card
HUB 2 Dante Card Virtual Mixer
Channels 9-16Channels 1-8
Dante Network
DANTE
DIGITAL OUT
Up to 4
Additional Mixers
Network Card
DIGITAL MIXER
AES/EBU DIGITAL OUTPUTS
AES Cable
AES Cable
AES/EBU Card AES/EBU Card
