This is it – the simplest, most affordable digital
solution to get everyone the mix they need to perform
their best. This new system platform is completely
modular and infinitely expandable, which means it is
the last personal monitoring system you’ll ever need.
With this system, there is no learning curve. Whether or not
you’ve ever used a personal monitor mixer, the simple layout
of this powerful system makes getting the right mix a quick
and effortless experience. Based in Gigabit Ethernet, this
framework paves the way for an impressive range of future
possibilities.
The Hear Back PRO System: Hub & Mixers

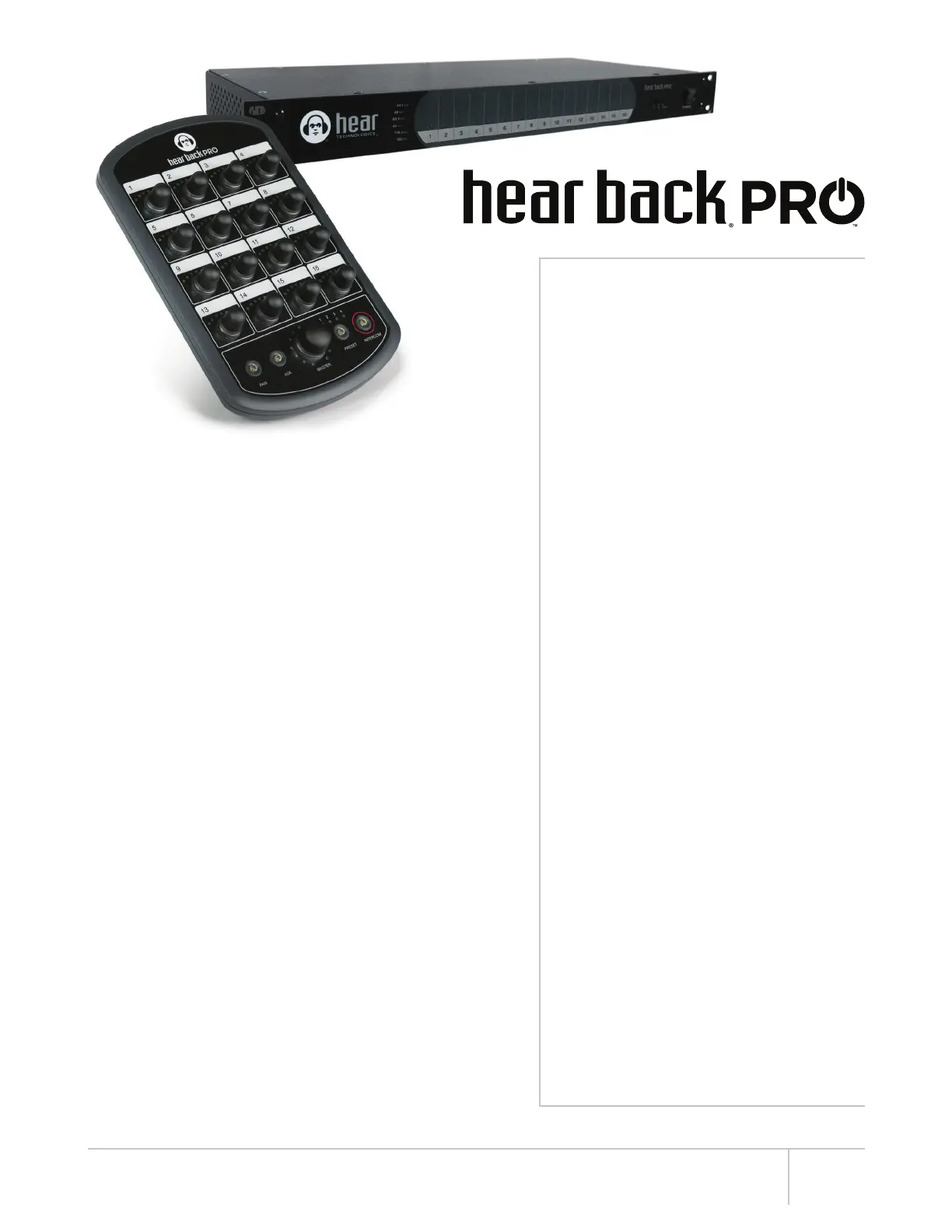

The Hear Back PRO system consists of two main
components: the Hub and the Mixer. The modular Hub
consists of four card slots, which can be populated with any
configuration of input and/or output cards to fit your exact
needs. Each Hub has the ability to supply signal and power
to as many as 32 Mixers (8 per Network Card), each over
a single standard CAT6* cable. And with the built-in HBUS
In/Out ports, multiple Hubs can be daisy-chained together,
allowing for truly unlimited system expansion.
The standard Hub (included in the Four Pack) comes pre-
loaded with one Network Card and your choice of input card.
For analog, two 8-channel Analog Input Cards are provided
which can accept input signals from an audio mixer via
auxiliary, matrix, monitor, and/or direct outputs. For digital
options, you can chose from our Waves SoundGrid, Dante,
ADAT, or AES/EBU Input/Output cards.
ADVANTAGES / FEATURES
• Side-mounted card slot on Mixer for
future expansion
• Large master knob controls overall main mix,
AUX, and intercom levels independently
• Volume and panning control of all channels
• Direct and immediate visual feedback
of all channels
• Support for sampling rates up to 192 kHz
• Selectable XLR or 1/8” Mixer AUX input
• Built-in intercom broadcasts the AUX source
(mic, MP3 player, click, etc.)
• Intercom auto adjusts its own level
so even the quietest message never goes
unheard
• Modular I/O Hub card system lets you
customize the system to match your
configuration, and can adapt to your needs
• Supports secondary power supply to provide
redundancy and power to up to 32 Mixers per
Hub Mainframe
• USB port on Hub makes updating firmware
for future features and upgrades a simple
drag-and-drop operation
• HBUS In/Out connections allow daisy-
chaining Hubs and a wireless access point
connection for use with the PRO’s iOS App
• Status indicating logos on Hub and Mixers
make it easy to detect and diagnose
problems, should they arise
• Write session info and channel settings
on storable Mixer overlays for an unlimited
number of presets
– Instantly store and recall presets from
memory with the push of a button
– Most recent configuration is saved, even
after power-down
• Hear Back PRO iOS App allows for
complete control of all Mixers connected
to the network
