23

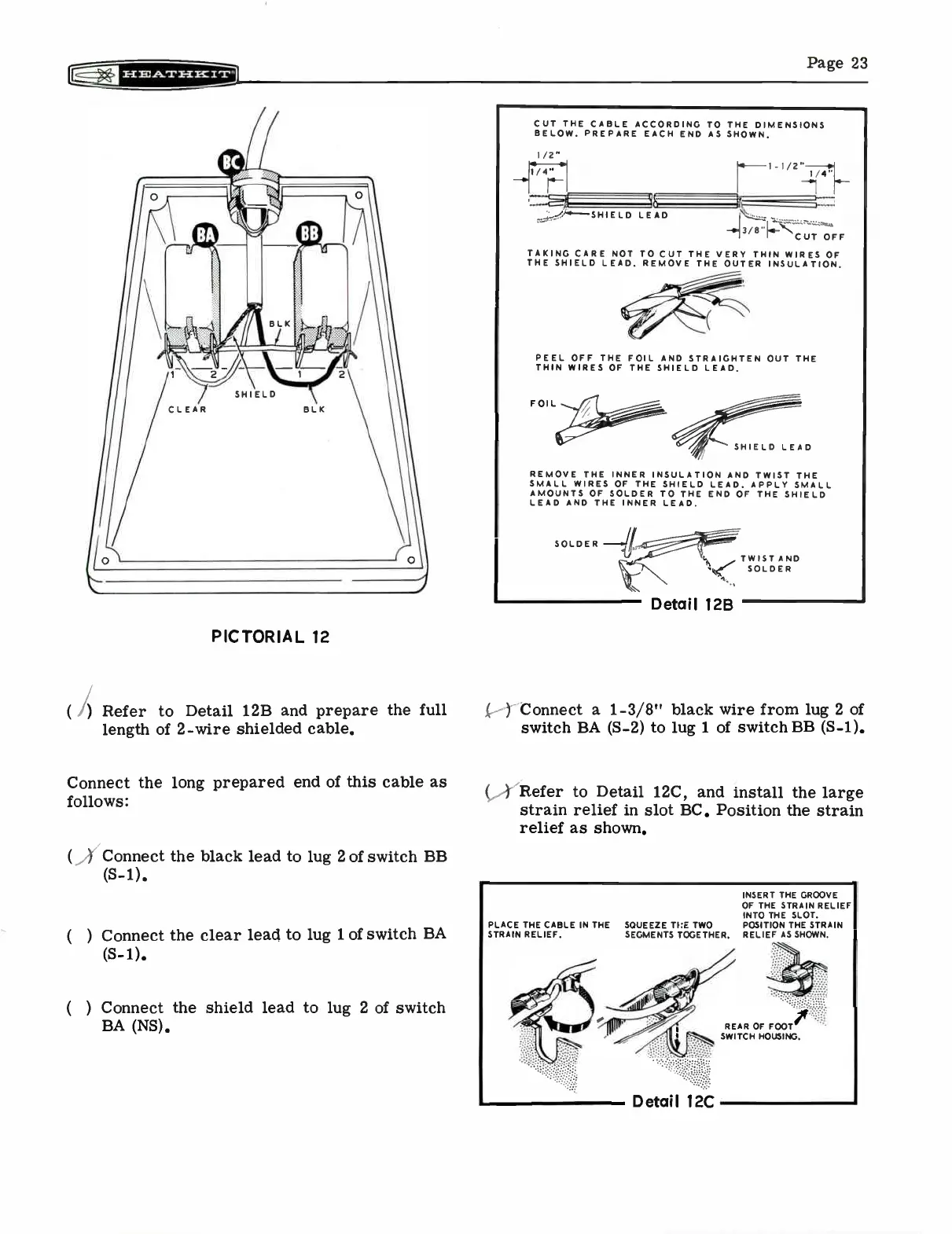

PICTORIAL
12
CUT
THE
CABLE
ACCORDING
TO
THE
DIMENSIONS
BELOW.
PREPARE
EACH
END
AS
SHOWN.
1/2"
1/4"
r -
t,
4 1
._
'-?/
4--
SHIELD
LEAD
Ir
3/13"1-4-N'
CUT
OFF
TAKING
CARE
NOT TO
CUT
THE
VERY
THIN
WIRES
OF
THE
SHIELD
LEAD.
REMOVE
THE
OUTER
INSULATION.
PEEL
OFF
THE
FOIL
AND
STRAIGHTEN
OUT
THE
THIN
WIRES
OF
THE SHIELD
LEAD.
FOIL
SHIELD
LEAD
REMOVE
THE
INNER
INSULATION
AND
TWIST
THE
SMALL
WIRES
OF
THE
SHIELD
LEAD.
APPLY SMALL
AMOUNTS
OF
SOLDER
TO THE
END
OF
THE
SHIELD
LEAD
AND THE
INNER LEAD.
SOLDER
TWIST
AND
.
¡K"
SOLDER
Detail
12B
( )
Refer
to
Detail
12B
and
prepare
the
full
( )
Connect
a
1-3/8"
black
wire
from
lug
2
of
switch
BA
(S-2)
to
lug
1
of
switch
BB
(S-1).
length
of
2-wire
shielded
cable.
Connect
the
long
prepared
end
of
this
cable
as
follows:
( )
Connect
the
black
lead
to
lug
2
of
switch
BB
-
(S-1).
( )
Connect
the
clear
lead
to
lug
1
of
switch
BA
(S-1).
( )
Connect
the
shield
lead
to
lug
2
of
switch
BA
(NS).
( )
Refer
to
Detail
12C,
and
install
the
large
strain
relief
in
slot
BC.
Position
the
strain
relief
as
shown.
PLACE
THE
CABLE
IN
THE
SQUEEZE
TI:E
TWO
STRAIN
RELIEF.
SEGMENTS
TOGETHER.
Detail
12C
INSERT
THE
GROOVE
OF
THE
STRAIN
RELIEF
INTO
THE
SLOT.
POSITION
THE
STRAIN
RELIEF
AS
SHOWN.
REAR
OF
FOOT
SWITCH
HOUSING.
