Page 5
START
The steps performed in
Pictorial 1 are in this
area of the circuit board.
NOTE: Some of the low-noise re-
sistors will be installed with their
leads bent slightly inward. Bend
these resistor leads inward before
installing the resistor. It is not
necessary to force these low-noise
resistors down so they are flat
against the circuit board.
(i) 24 KO (red-yellow-orange) low-
noise.
/
( ) 470 Ka (yellow-violet-yellow)
low-noise.
(j) 6800 f2 (blue-gray-red).
(VS 10 KS2 (brown-black-orange).
(/) 5600 S2 (green-blue-red).
(• i) 1000 a (brown-black-red).
( Vç 10 KS2 (brown-black-orange).
(//) 47 KR (yellow-violet-orange).
/
()( Solder all connections and cut
off excess lead lengths.
( ) 27 Ka (red-violet-orange).
( ) 6800 a (blue-gray-red).
( . ) 560 Ka (green-blue-yellow).
(. ) 47 Kf2 (yellow-violet-orange).
( ) 22 a (red-red-black).
( ) 15 KS2 (brown-green-orange).
( ) 150 12 1 watt (brown-green-
brown).
CA / 150 a 1 watt (brown-green-
brown).
•") 1000 S2 2 watt (brown-black-red).
(' I ) Solder all connections and cut
off excess lead lengths.

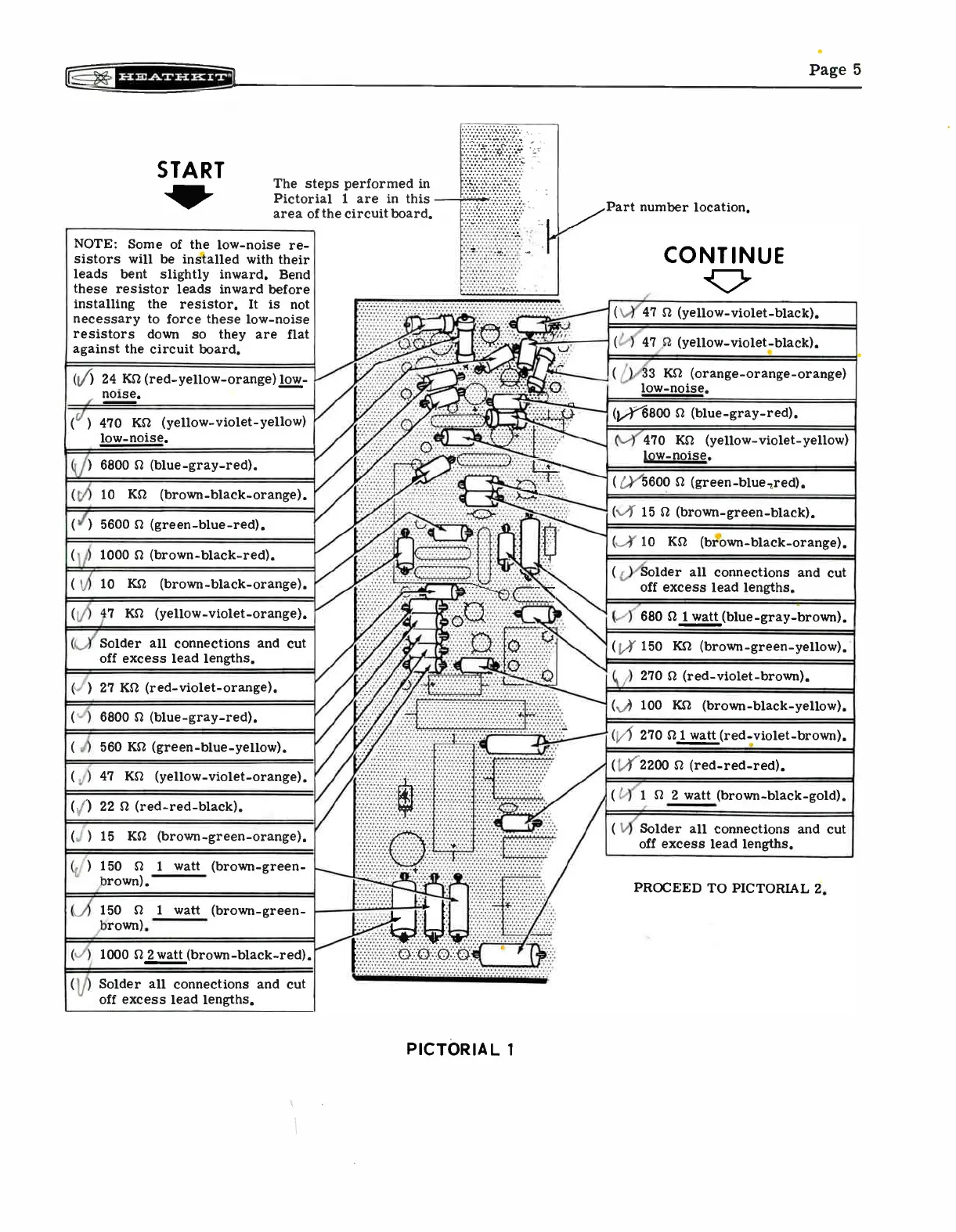

PICTORIAL 1
Part number location.
CONTINUE
(\.,Y47 SI (yellow-violet-black).
(' ) 47 f2 (yellow-violet-black).
,( )A3 KS2 (orange-orange-orange)
low-noise.
• (06800 f2 (blue-gray-red).
(\.4 / 470 Ks2 (yellow-violet-yellow)
low-noise.
( 24600 S2 (green-blue-red).
(\..4 15 f2 (brown-green-black).
L.. -y 10 Ka (brown-black-orange).
( ySolder all connections and cut
off excess lead lengths.
(. ) 680 a 1 watt (blue-gray-brown).
( vr 150 KS2 (brown-green-yellow).
(,‘ ) 270 a (red-violet-brown).
(,,,) 100 Kn (brown-black-yellow).
(4 270 a 1 watt (red-violet-brown).
( L. 2200 S2 (red-red-red).
( ' ) 1 S2 2 watt (brown-black-gold).
(4 Solder all connections and cut
off excess lead lengths.
PROCEED TO PICTORIAL 2.
